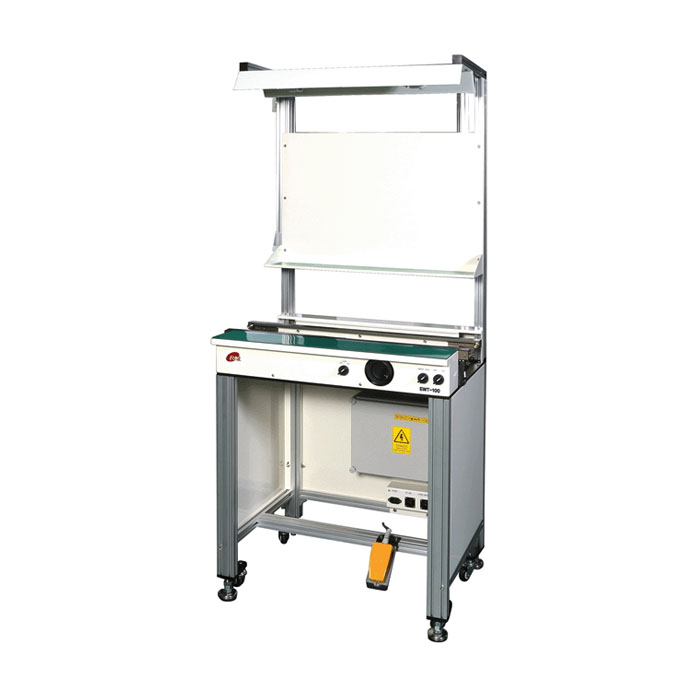

Work Station
Model
EWT-100
Name of Equipment
Work Station
Description
Design to work/inspect and transfer PCBs to next process. Under inspect mode, PCB stop at middle of conveyor. After operator work/inspect PCBs, press foot pedal or pass button. Then, PCB move to end of conveyor and ready to transfer to next process.
Under pass mode, machine works as normal connecting conveyor.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. Safety Cover without Component Bin Tray
6. Variable Length : 500mm to 3,000mm
7. Variable Buffer Stations : 1 Buffer, 2 Buffers or 3Buffers by Motor Drive
8. Variable Conveyor Belt : #25 Chain Belt, Round Belt, Timing Belt
9. Dual Conveyor Type without Overhead Light and Component Bin Tray
(Model Name : EWT-100D)
10. CE Appliance (Model Name : EWT-100C)
11. Large PCBs (Over 530Lx460W) Applicable
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch and Foot Pedal or Pass Button for Operating Panel
3. Overhead Light and Component Bin Tray
4. ESD Mat Table
5. Standard Conveyor Length : 800mm
6. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
7. Selectable Mode (Inspect Mode or Pass Mode) by Switch
8. Conforms to SMEMA Spec. 1.2
| Model | EWT-100 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 800X585X1826 | 800X685X1826 | 800X795X1826 |
| Weight (kg) | 80 | 90 | 100 |
