Mech-Eye 3D Laser Profilers
Mech-Eye LNX 3D laser profilers deliver 4K and higher resolution profile data at rates of up to 15 kHz for inline inspection and dimensional measurement.
Mech-Eye 3D Laser ProfilersMech-Eye LNX 3D laser profilers feature 4K+ resolution* and high scan rates (up to 15 kHz*) to deliver highly accurate 3D data of tiny features and defects at a faster speed. These sensors are designed for industrial measurement and inspection applications in electronics, EV battery, and automotive industries.
4K+ Resolution
4,096* data points per profile for high-resolution 3D inspection of targets (dents, seams, edges, etc.)
Ultra-High Scan Rates
Scan rates up to 3.3 kHz* (scan of full FOV) and 15 kHz* (scan of full X measurement range). Advanced optics and algorithms to deliver highly accurate 3D data at a faster speed.
Micron-Level Precision
X resolution down to 9 μm*, Z repeatability down to 0.2 μm, and ± 0.02% of F.S. linearity, allowing for the high-precision inspection and measurement of tiny features and defects.
Single-Shot HDR
The function makes it possible to scan dark (low reflectivity) and reflective (high reflectivity) surfaces in one exposure while creating complete point clouds.
Ease of Use
Extensible interface for image acquisition, including C++/C#/Python API. Compliant with GenICam3.0 and GigE Vision standards.

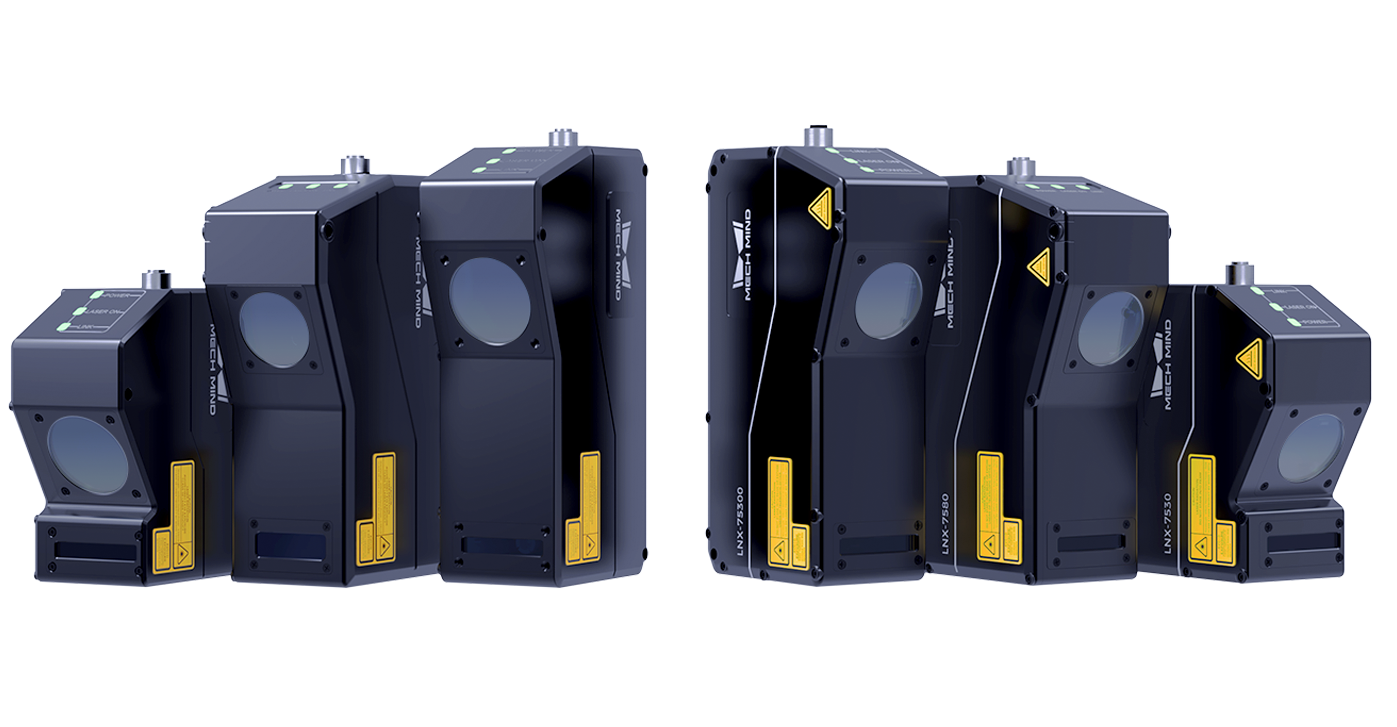

Multiple Models
A cutting-edge lineup designed for inspection and measurement in various scenarios across industries.
Point Cloud Examples

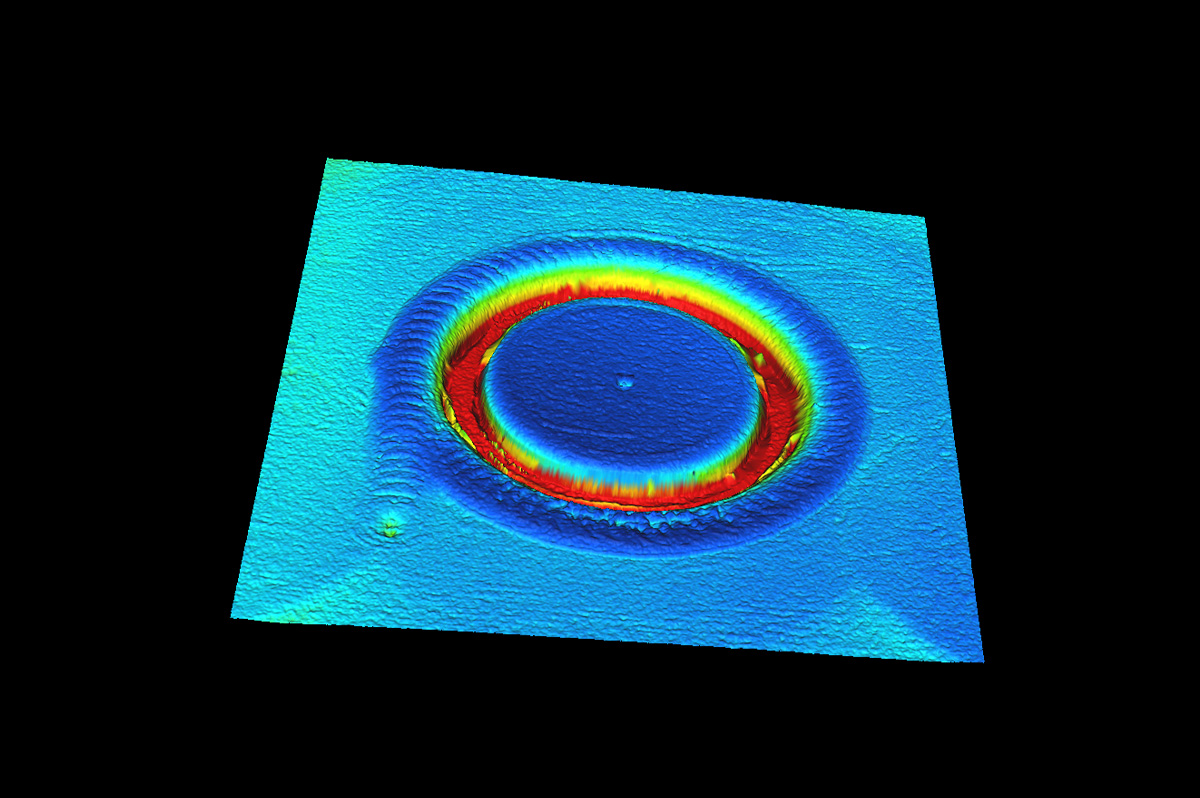

Sealing pin
Point cloud obtained by Mech-Eye LNX-8030-GL

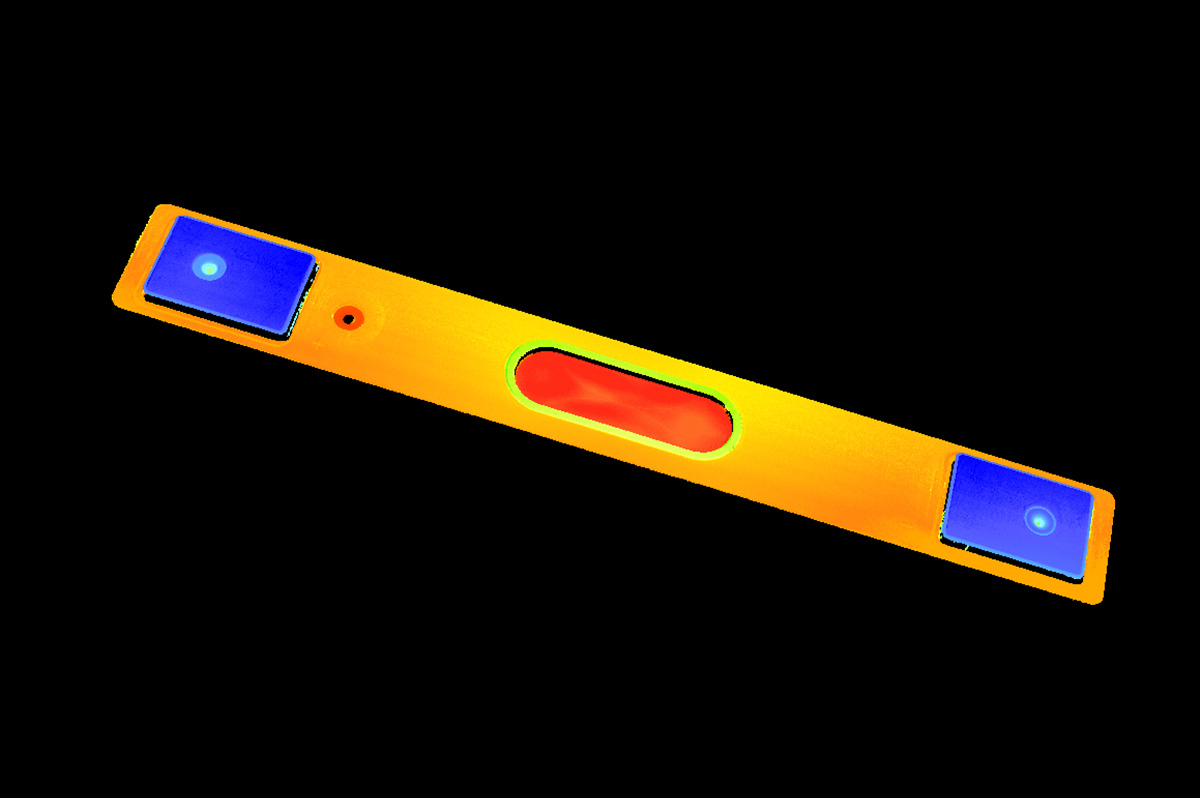

Smartphone midplate
Point cloud obtained by Mech-Eye LNX-8080-GL

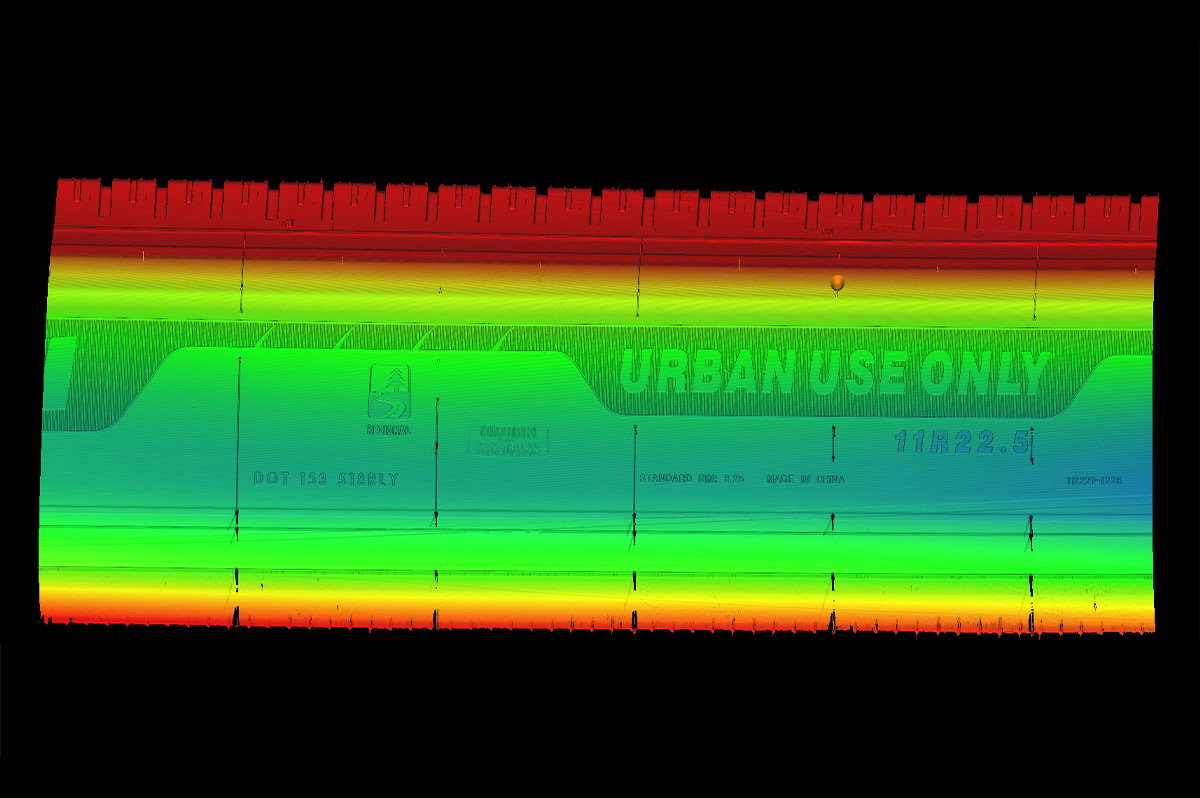

Tire DOT code
Point cloud obtained by Mech-Eye LNX-8300-GL

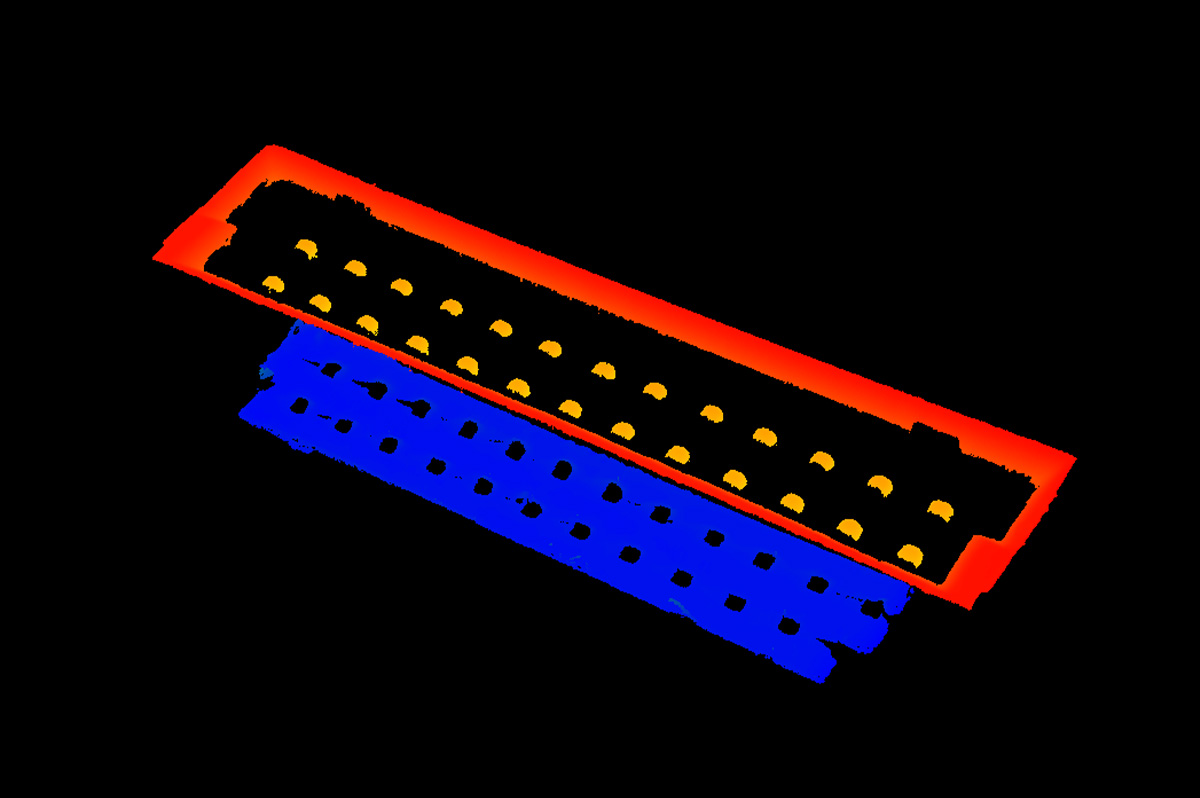

Connector pins
Point cloud obtained by Mech-Eye LNX-7530-GL
Battery cell lid
Point cloud obtained by Mech-Eye LNX-7580-GL

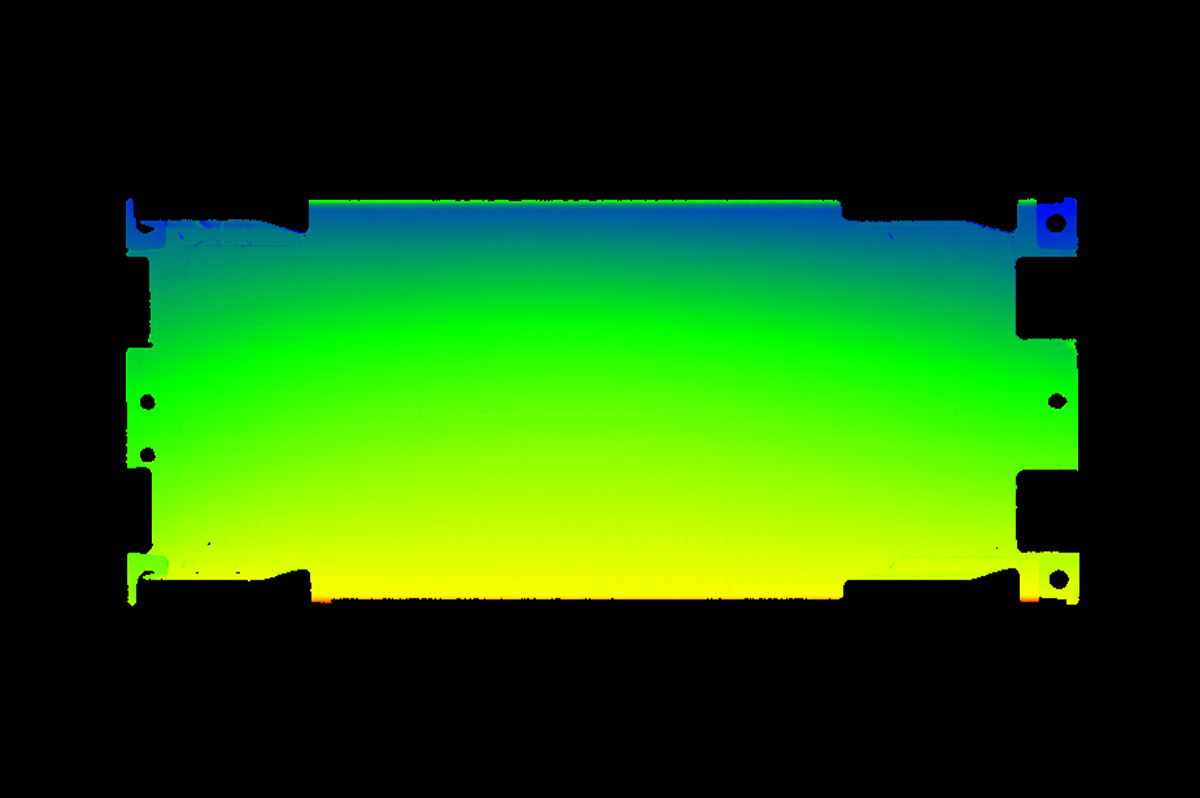

Battery module
Point cloud obtained by Mech-Eye LNX-75300-GL
Key Specs
| Model | LNX-8030-GL | LNX-8080-GL | LNX-8300-GL | LNX-7515-GL* | LNX-7530-GL | LNX-7580-GL | LNX-75150-GL | LNX-75300-GL | |
|---|---|---|---|---|---|---|---|---|---|
| Data Points/Profile | 4,096 | 3,200 | |||||||
| Scan Rate | 3.3–15 kHz | 2-10 kHz | |||||||
| Reference Distance (RD) | 78 mm | 250 mm | 325 mm | 35 mm | 78 mm | 250 mm | 228 mm | 325 mm | |
| Measurement Range Z | 30 mm | 100 mm | 305 mm | 6 mm | 25 mm | 76 mm | 135 mm | 295 mm | |
| MeasurementRange X | Near | 33 mm | 76 mm | 230 mm | 12 mm | 31 mm | 72 mm | 123 mm | 219 mm |
| RD | 35 mm | 89 mm | 310 mm | 13 mm | 33 mm | 82 mm | 150 mm | 300 mm | |
| Far | 37 mm | 96 mm | 430 mm | 13 mm | 35 mm | 89 mm | 167 mm | 422 mm | |
| Resolution X | 9 µm | 23.5 µm | 105 µm | 4 μm | 11 μm | 28 μm | 52 μm | 132 μm | |
| Repeatability Z | 0.2 µm | 0.5 µm | 2 µm | 0.15 μm | 0.2 μm | 0.5 μm | 1.5 μm | 2 μm | |
| Linearity Z | ±0.02% of F.S. | ||||||||
| Weight | 1.0 kg | 1.2 kg | 1.4 kg | 1.0 kg | 1.0 kg | 1.2 kg | 1.1 kg | 1.4 kg | |
| Dimensions | 133 × 61 × 102 mm | 182 × 63 × 112 mm | 195 × 61 × 109 mm | 131 × 58 × 100 mm | 133 × 61 × 102 mm | 182 × 63 × 112 mm | 199 × 57 × 108 mm | 195 × 61 × 109 mm | |
| Laser | Blue (405 nm, Class 2) | Blue (405 nm, Class 2M) | Blue (405 nm, Class 2) | Blue (405 nm, Class 2M) | |||||
| Lens Inclination | 30° | 22° | 19° | 42° | 30° | 22° | 25° | 19° | |
| Input Voltage | 24 VDC | ||||||||
| Peak Power | 48W | ||||||||
| Communication Interface | Gigabit Ethernet | ||||||||
| Encoder Input | Single-ended and differential encoders supported | ||||||||
| Operating Temparature | 0–45℃ | ||||||||
| Safety and EMC | CE/FCC/VCCI/KC/ISED/NRTL | ||||||||
| IP Rating | IP67 | ||||||||
| Cooling | Passive | ||||||||
| Remark | 1. For detailed product specifications, please refer to Mech-Mind Documentation.2. The product specifications are subject to Mech-Mind’s official website.* The LNX-7515-GL will soon enter mass production. We warmly invite you to request a prototype for testing |
