LASER MARKING/WELDING STATION

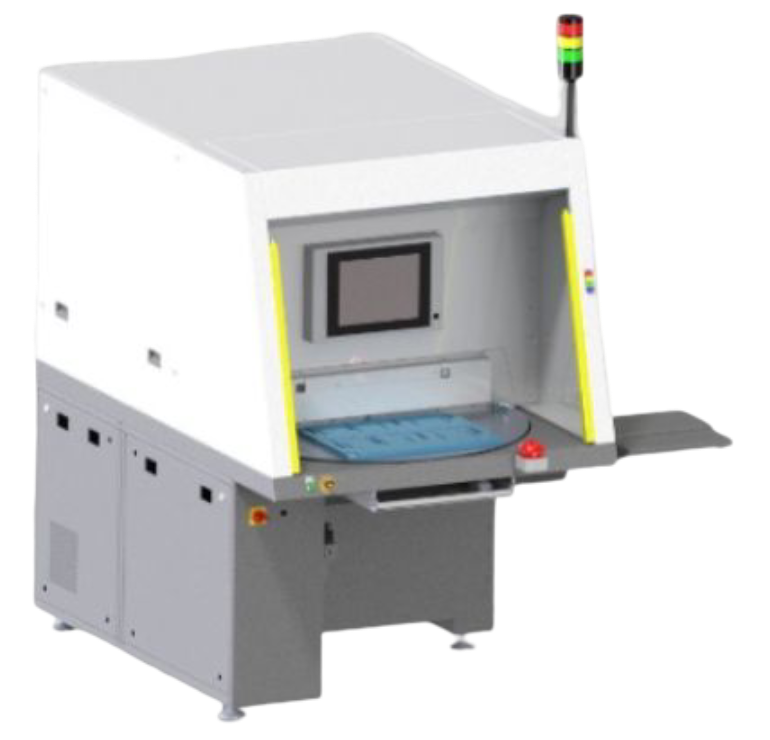

RX3 has the largest rotary table of the OTES marking workstations, which suits automated batch production where parts are loaded and marked in cycles.
RX3RX3 has a large rotary table of all OTES marking workstations, making it ideal for automated batch production, both small and large lot sizes. Individual large and heavy parts can be accommodated inside the station, as can many small components that need to be processed on fixtures.
Features
Specialist for series production
The large work area and many options mean that the station is ideal for large lot sizes
Outstanding ergonomics
The well-thought-out design of the work station counteracts fatigue for the machine operator.
Moving Laser
The only station whereby the laser moves through the entire work area and the component is stationary. You can mark workpieces of a wide range of sizes inside the RX3 Laser marking station. The laser can be moved using three axes in the X,Y and Z direction.
Easy Integration
You can easily activate the system without affecting your production plans and workflow.
Easy Product Creation
With TruTops Mark software, you can adapt the drawings in various formats to the easy system.
Quick Product Change
By marking four different products in a recipe, you can eliminate the time loss while changing the product.
Specifications
| Laser | Trumpf 6350, 3330 UV Laser |
|---|---|
| Laser Power | Max 5W |
| Positioning Dimensions (X,Y,Z) | 700×300×300 mm |
| Table Diameter | 1000 mm |
| Max. Positioning Speed | 1 m/sec |
| Positioning Accuracy | ± 0.01 mm |
| Fixture Capacity | 4 |
| Fixture Flipping | Yes |
| Index Time | 2 secs |
| Dimensions (W×H×D) | 1200×2010×1630 mm |
| Weight | 750 kg |
| Max Workpiece Dimension | 450×900 mm |
| Max Workpiece Weight (Incl. Fixture) | 30 kg |
