Turning Conveyor
Model

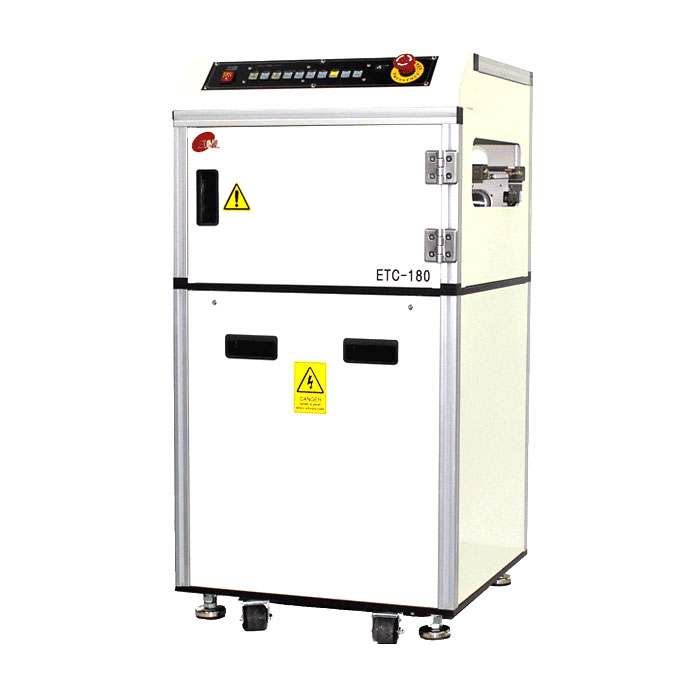

ETC-180
Name of Equipment
Turning Conveyor
Description
Designed to change PCB flow as 90 degree clockwise or 90 degree counterclockwise by using pneumatic cylinder. In case of factory limited space, this machine can be applied to change line flow. Also able to apply 180 degree turn to change fixed rail from front fixed rail to rear fixed rail or from rear fixed rail to front fixed rail in the line. Depends on the line lay-out, customized in/out position and quantity can be applicable. Only one of turn angle can be applied for each machine.
Options
1. Auto or Semi-Auto Width Adjustment
2. 3 Color Tower Lamp with Audible Alarm
3. ESD Grounding Receptacles
4. Conveyor Reverse Running
5. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
6. CE Appliance (Model Name : ETC-180C)
7. Large PCBs (Over 530Lx460W) Applicable
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen for Operating Panel
3. Selectable Turn Angle (When it becomes order, it should be fixed.)
: 90 Degree Clockwise or 90 Degree Counterclockwise or 180 Degree with Order
4. Safety Cover
5. Conforms to SMEMA Spec. 1.2
| Model | ETC-180 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 550x550x1100 | 650x650x1100 | 950x950x1100 |
| Weight (kg) | 80 | 90 | 100 |
