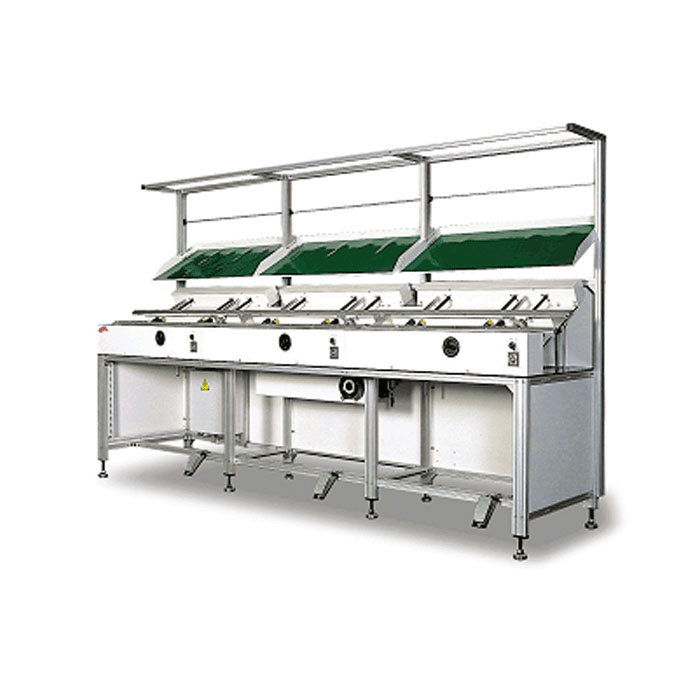

Tilting Insertion Conveyor
Model
EAC-3000
Name of Equipment
Tilting Insertion Conveyor
Description
Designed to be used as a linear work station for manual inserting production line. Conveyor is tilted as specific angle (15 degree or 30 degree) for easy access to PCBs. Due to tilted angle, line configuration for in-line is EAC-500->EAC-3000->EAC-500.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. 06B Roller Chain Belt Running
6. Variable Buffer Stations : 1 Buffer, 2 Buffers or 3Buffers by Motor Drive or Pneumatic Cylinder Stopper
7. No Motor Drive, No PLC(Programmable Logic Controller) Control
8. CE Appliance (Model Name : EAC-3000C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operating Panel
3. Overhead Light and Component Bin Tray
4. Conveyor Length : 1,000mm, 2,000mm, 3,000mm, etc
5. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180 mm/sec (60Hz)
6. Tilting Angle : 15 degree or 30 degree Fixed
7. Conforms to SMEMA Spec. 1.2
