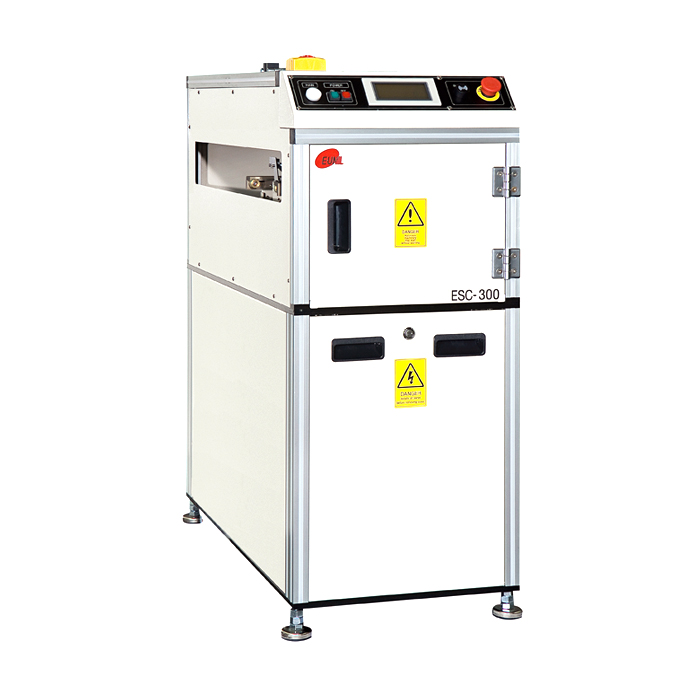

Sliding Conveyor
Model
ESC-300
Name of Equipment
Sliding Conveyor
Description
Designed to transfer PCBs between different fixed rail positions. Able to collect PCBs from lines or distribute PCBs to lines. Depends on the line lay-out, customized sliding stroke, in/out position and quantity can be applicable as option.
Options
1. Auto or Semi-Auto Width Adjustment
2. 3 Color Tower Lamp with Audible Alarm
3. ESD Grounding Receptacles
4. Conveyor Table Moving by AC Brake Motor (Inverter Control) or Servo Motor Drive
: Stroke can be customized
5. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
6. CE Appliance (Model Name : ESC-300C)
7. Large PCBs (Over 530Lx460W) Applicable
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen for Operating Panel
3. Standard Conveyor Table Moving by Pneumatic Cylinder
: Stroke for SL Size 480mm fixed
4. Safety Cover
5. Conforms to SMEMA Spec. 1.2
| Model | ESC-300 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 580x1100x1100 | 680x1200x1100 | 780x1300x1100 |
| Weight (kg) | 90 | 100 | 110 |
