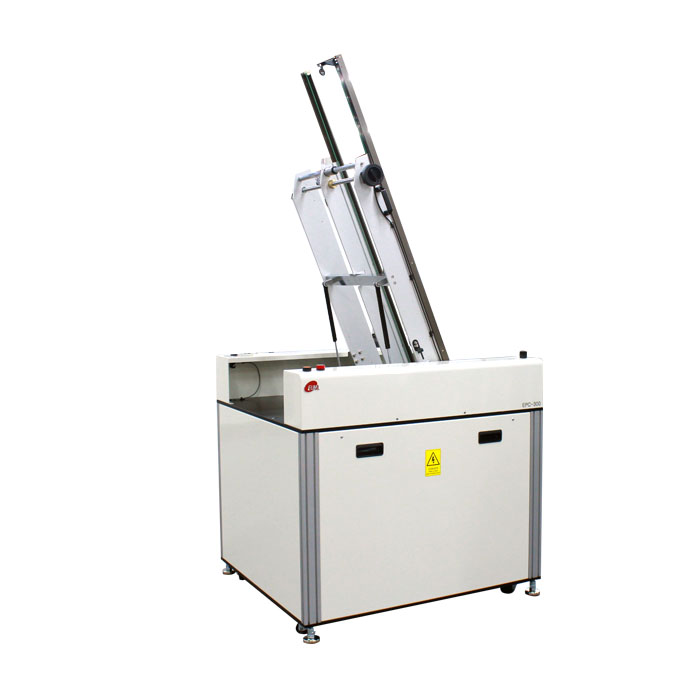

Passageway Conveyor
Model
EPC-300
Name of Equipment
Passageway Conveyor
Description
Design to provide a normally close walkway through a production line. PCB is transferred to down line as like normal conveyor. By pressing Interlock Reset Button, operator can lift up the conveyor manually. To maintain a clear walkway (500mm), conveyor is fixed by gas spring.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. Safety Cover
6. Customized Walkway Length
7. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
8. CE Appliance (Model Name : EPC-300C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operating Panel
3. Interlock Reset Button for Walkway Use (Both Front and Rear)
4. 500mm Walkway (Normally Close)
5. Passageway Open Manually and Fixed by Gas Spring
6. Conforms to SMEMA Spec. 1.2
| Model | EPC-300 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 1100x650x950 | 1200x750x950 | 1300x860x950 |
| Weight (kg) | 80 | 90 | 100 |
