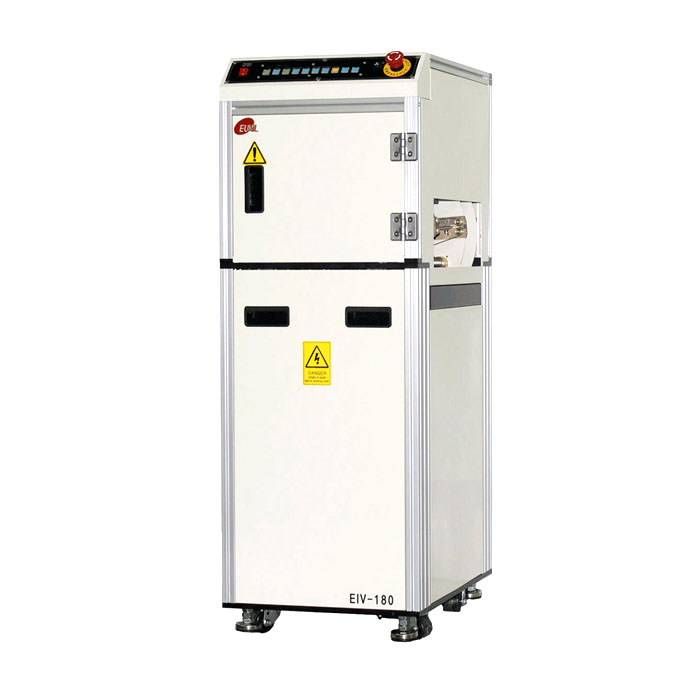

Inverter Flip Station
Model
EIV-180
Name of Equipment
Inverter Flip Station
Description
Designed to change PCB upper and lower sides as 180 degree flip over by using pneumatic cylinder. For double side working of PCB, this machine can be applied. Pass mode and Auto (Invert) mode are selectable by touch screen.
Options
1. Auto or Semi-Auto Width Adjustment
2. 3 Color Tower Lamp with Audible Alarm
3. ESD Grounding Receptacles
4. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
5. Dual Inverter Type
6. CE Appliance (Model Name : EIV-180C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen for Operating Panel
3. Safety Cover
4. Selectable Mode (Auto Mode-Invert or Pass Mode) by Touch Screen
5. Conforms to SMEMA Spec. 1.2
| Model | EIV-180 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 450x630x1300 | 550x730x1300 | 650x830x1300 |
| Weight (kg) | 130 | 150 | 180 |
