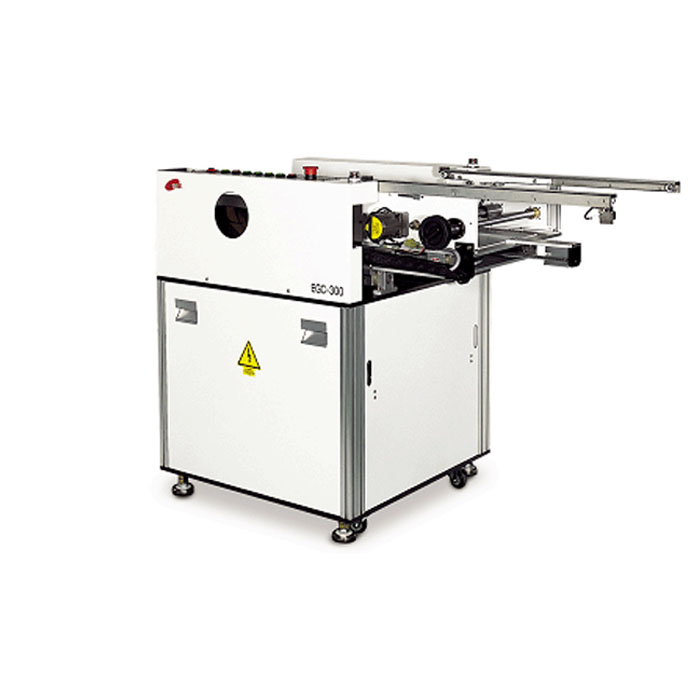

Gate Conveyor(Normally Open Walkway)
Model
EGC-300
Name of Equipment
Gate Conveyor (Normally Open Walkway)
Description
Designed to provide a normally open walkway through a production line. The shuttle gate automatically extends to deliver PCB across a clear walkway (600mm) once the downstream process is ready. By pressing Interlock Reset Button, open walkway can be maintain while operator pass the way.
Options
1. Auto or Semi-Auto Width Adjustment
2. 3 Color Tower Lamp with Audible Alarm
3. ESD Grounding Receptacles
4. Safety Cover
5. Customized Walkway Length
6. Shuttle Gate Extended by Servo Motor
7. Safety Mat or Area Sensor for Walkway
8. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
9. CE Appliance (Model Name : EGC-300C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen for Operating Panel
3. Interlock Reset Button for Walkway Use (Both Front and Rear)
4. 600mm Walkway (Normally Open)
5. Shuttle Gate Extended by Cylinder
6. Safety Stop Walkway Sensors
7. Conforms to SMEMA Spec. 1.2
| Model | EGC-300 | |
| Type | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 670(1270)x650x910 | 670(1270)x750x910 |
| Weight (kg) | 160 | 180 |
