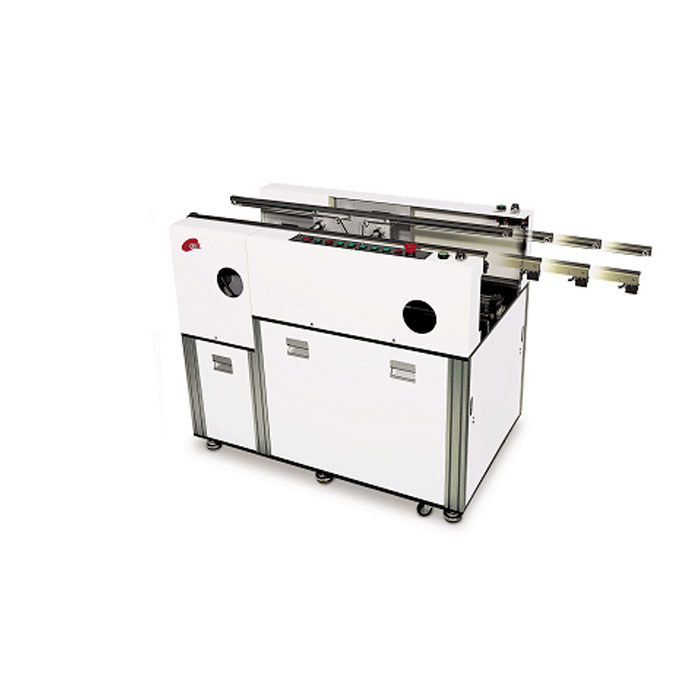

Gate Conveyor(Normally Close Walkway)
Model
EGC-500
Name of Equipment
Gate Conveyor (Normally Close Walkway)
Description
Design to provide a normally close walkway through a production line. Two buffer conveyor transfer PCB to down line as like normal conveyor. By pressing Interlock Reset Button, conveyor 1 is down and conveyor 2 is backward to make and maintain a clear walkway (500mm).
Options
1. Auto or Semi-Auto Width Adjustment
2. 3 Color Tower Lamp with Audible Alarm
3. ESD Grounding Receptacles
4. Safety Cover
5. Customized Walkway Length
6. Shuttle Gate Moved by Servo Motor
7. Safety Mat or Area Sensor for Walkway
8. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
9. CE Appliance (Model Name : EGC-500C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen for Operating Panel
3. Interlock Reset Button for Walkway Use (Both Front and Rear)
4. 500mm Walkway (Normally Close)
5. Shuttle Gate Moved by Cylinder
6. Safety Stop Walkway Sensors
7. Conforms to SMEMA Spec. 1.2
| Model | EGC-500 | |
| Type | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 1570x650x910 | 1570x750x910 |
| Weight (kg) | 180 | 200 |
