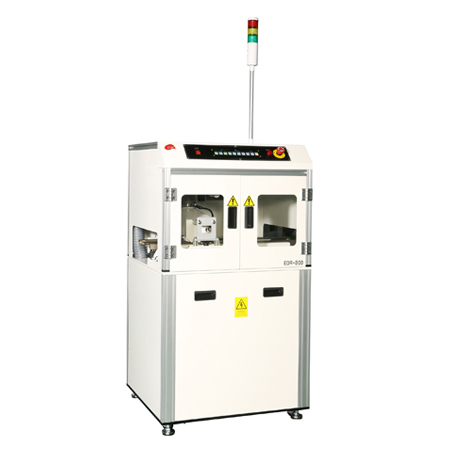

Dust Remover
Model
EDR-300
Name of Equipment
Dust Remover
Description
Designed to remove / clean dust from bare board at the beginning of production line. Two types concept are there. One is anti-static brush type and the other is air knife type.
Options
1. Auto or Semi-Auto Width Adjustment
2. ESD Grounding Receptacles
3. Ion Blower
4. PCB Center Support Bar
5. Space Compact Type (Model Name : EDR-400)
6. CE Appliance (Model Name : EDR-300C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. Safety Cover
5. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
6. Selectable Mode (Auto Mode – Clean or Pass Mode) by Touch Screen
– Clean Mode : For Bare PCBs, clearning will be progressed during PCBs transfer.
– Pass Mode : For Mounted PCBs, machine will work as like normal connecting conveyor.
7. Cleaning Concept (When it becomes order, it should be selected.) : Anti Static Brush Type or Air Knife Type
8. Ionizing Bar
9. Ring Blower for Dust Impinger
10. Conforms to SMEMA Spec. 1.2
| Model | EDR-300 | |
| Type | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 800x700x1300 | 900x810x1300 |
| Weight (kg) | 240 | 280 |
