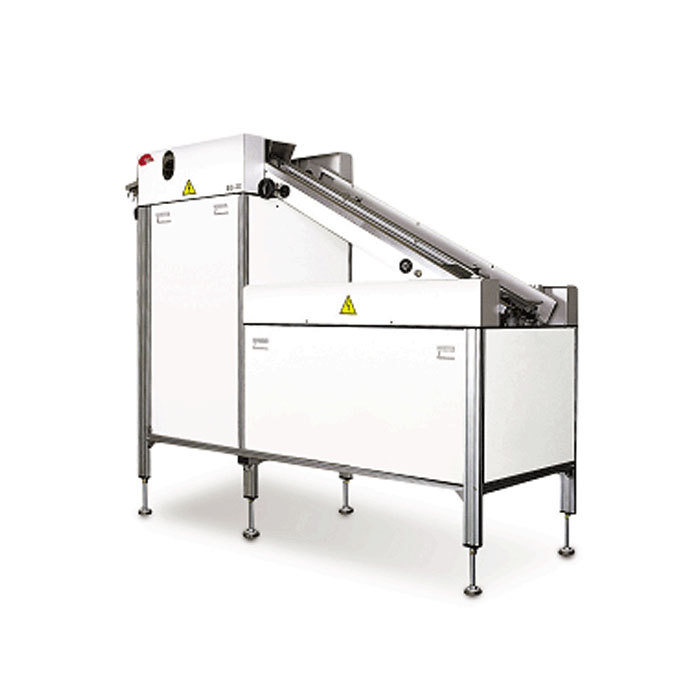

Decline Conveyor
Model
EIC-720
Name of Equipment
Decline Conveyor
Description
Design to smoothly outfeed PCBs from wave soldering machine which has angle. Depends on the customer requirement, different belt type and cooling fan option can be applied.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. Safety Cover
6. Cooling Fan : Post Type
7. Conveyor Three Buffers by Motor Drive
8. Variable Conveyor Belt : #25 Chain Belt, Round Belt, Timing Belt, Flat Belt
9. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
10. CE Appliance (Model Name : EIC-720C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operating Panel
3. Conveyor Two Buffers by Motor Drive
4. Customized Conveyor Entrance Side Angle
: Depends on the Wave Soldering Machine Outfeed Height and Angle
5. Conforms to SMEMA Spec. 1.2
| Model | EIC-720 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 2180x550x1470 | 2180x650x1470 | 2180x760x1470 |
| Weight (kg) | 150 | 170 | 180 |
