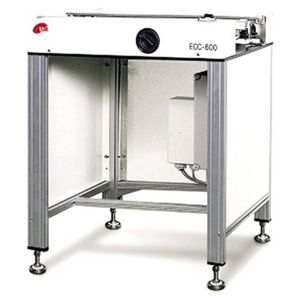

Connecting Conveyor
Model
ECC-600
Name of Equipment
Connecting Conveyor
Description
Designed to transport PCBs on edge belts and can be used as a linear buffer.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. Safety Cover
6. Cooling Fan : Cover Type or Post Type
7. Variable Length : 500mm to 3,000mm
8. Variable Buffer Stations : 1 Buffer, 2 Buffers or 3Buffers by Motor Drive
9. Variable Conveyor Belt : #25 Chain Belt, Round Belt, Timing Belt
10. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
11. Dual Conveyor Type (Model Name : ECC-600D)
12. CE Appliance (Model Name : ECC-600C)
13. Large PCBs (Over 530Lx460W) Applicable
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operating Panel
3. Standard Conveyor Length : 800mm
4. Conforms to SMEMA Spec. 1.2
| Model | ECC-600 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 800x550x910 | 800x650x910 | 800x760x910 |
| Weight (kg) | 70 | 80 | 90 |
