Product Features

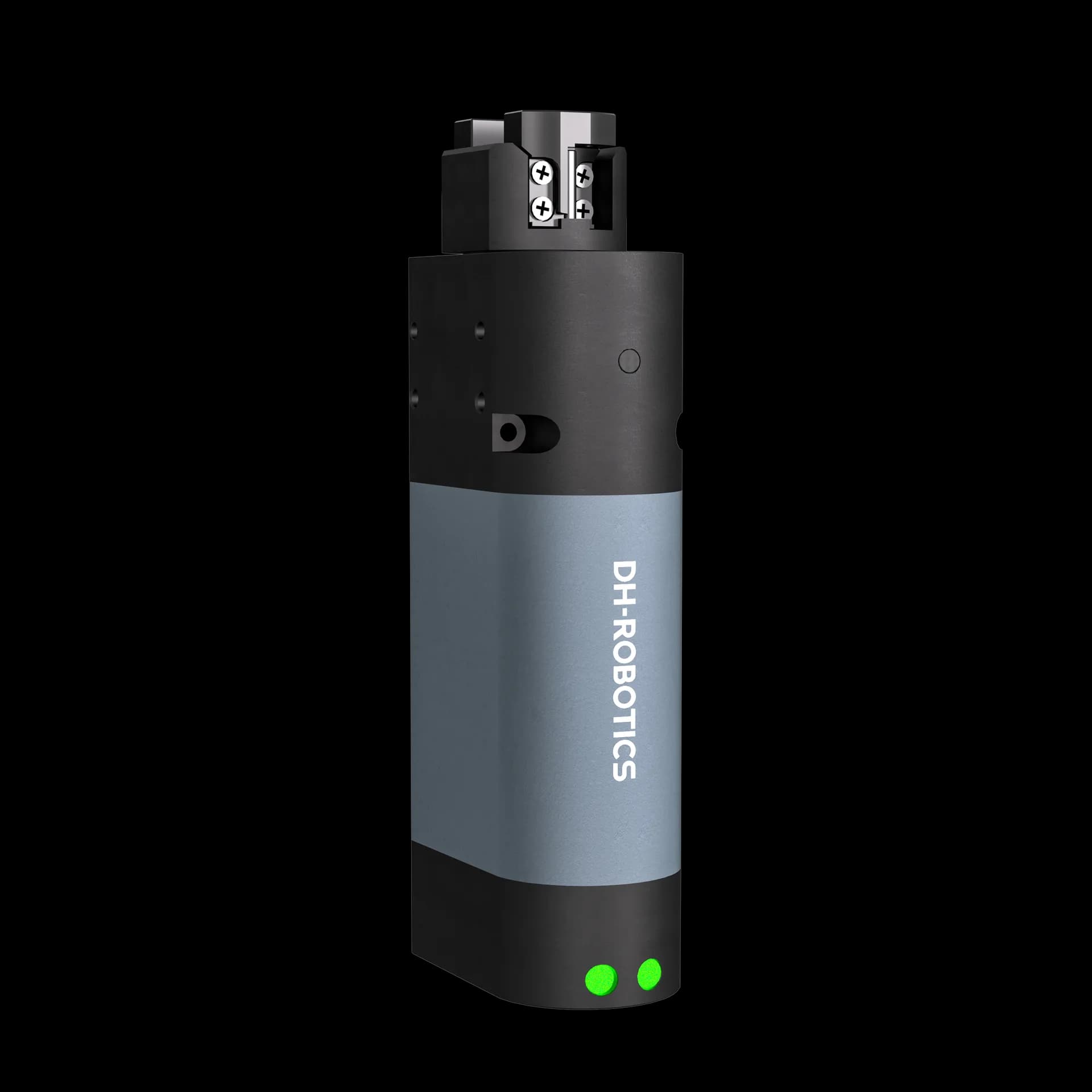

Backed by the strong R&D capabilities of DH-Robotics, the RGI series is the first independently developed infinite servo rotary gripper. With its compact and precise design, the product has proven its reliability in real industrial applications. This gripper is widely used in medical automation for handling test tubes.
Backed by the strong R&D capabilities of DH-Robotics, the RGI series is the first independently developed infinite servo rotary gripper. With its compact and precise design, the product has proven its reliability in real industrial applications. This gripper is widely used in medical automation, gripping and rotating test tubes efficiently. It also plays a critical role in electronics, new energy and other smart manufacturing industries, meeting the evolving demands of modern automation. Request a quote now to experience reliable, efficient and high-performance automation solutions with DH-Robotics.
Zero backlash l High repeatability
The RGD series uses direct-drive electric rotary actuators to achieve zero backlash, with a rotation resolution of 0.01°, making it well suited to rotary positioning scenarios in semiconductor manufacturing.
Fast and Stable
Thanks to DH-Robotics' excellent drive control method and precise direct-drive technology, the RGD series controls gripping and rotation movements with high accuracy. Rotation speed reaches 1500° per second.
Integrated structure l Power-loss protection
The dual servo system for gripping and rotation is integrated with the drive control module, making it more compact and suitable for a wider range of scenarios. Brakes are optional to meet the needs of various applications.
Product Features
- Integrated design
- Adjustable parameters
- Intelligent feedback
- Replaceable fingertip
- IP40
- Low-temperature operation
- CE certification
- FCC certification
- RoHS certification
Product Parameters
| RGD-5-14 | RGD-35-14 | RGD-35-30 | |
|---|---|---|---|
| Gripping force (per jaw) | 2-5.5 N | 10-35 N | 10-35 N |
| Stroke | 14 mm | 14 mm | 30 mm |
| Rated torque | 0.1 N·m | 0.1 N·m | 0.1 N·m |
| Maximum torque | 0.25 N·m | 0.25 N·m | 0.25 N·m |
| Rotation range | Infinite rotation | Infinite rotation | Infinite rotation |
| Recommended workpiece weight | 0.05 kg | 0.35 kg | 0.35 kg |
| Max. rotation speed | 1500 deg/s | 1500 deg/s | 1500 deg/s |
| Rotation backlash | Zero backlash | Zero backlash | Zero backlash |
| Repeatability (rotation) | ± 0.1 deg | ± 0.1 deg | ± 0.1 deg |
| Repeatability (position) | ± 0.02 mm | ± 0.02 mm | ± 0.02 mm |
| Opening/closing time | 0.5 s/0.5 s | 0.5 s/0.5 s | 0.7 s/0.7 s |
| Weight | 0.86 kg (without brake), 0.88 kg (with brake) | 0.86 kg (without brake), 0.88 kg (with brake) | 1 kg (without brake), 1.02 kg (with brake) |
| Dimensions | 149 mm x 50 mm x 50 mm | 159 mm x 50 mm x 50 mm | 159 mm x 50 mm x 50 mm |
| Communication interface | Modbus RTU (RS485) | ||
| Operating noise | < 60 dB | ||
| Rated voltage | 24 V DC ± 10% | ||
| Rated current | 1.2 A | ||
| Peak current | 2.5 A | ||
| IP rating | IP 40 | ||
| Recommended environment | 0~40°C, below 85% RH | ||
| Certification | CE, FCC, RoHS |
