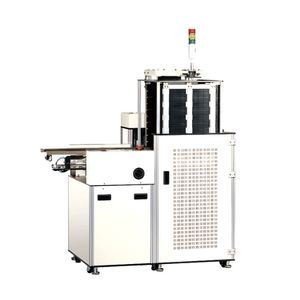

Multi-Purpose Buffer
Model ESM-100 / ESM-200Equipment NameMulti-Purpose BufferDescriptionDesigned to balance the production line between machines with different process times. A cylinder pushes the PCBs to stack them into the magazine rack and deliver them to the next process. The machine is a multi-purpose
Model ESM-100 / ESM-200
Equipment Name
Multi-Purpose Buffer
Description
Designed to balance the production line between machines with different process times. A cylinder pushes the PCBs to stack them into the magazine rack and deliver them to the next process. The machine provides multi-purpose functions with a single magazine rack capacity. FIFO or LIFO modes can be selected for buffer operation. After an inspection machine, NG PCBs can be stacked in NG mode. Loader mode (ESM-200 only) loads PCBs from the magazine rack, and unloader mode (ESM-200 only) unloads PCBs into the magazine rack.
Options
1. Automatic or Semi-Automatic Width Adjustment
2. Exit Rail Guide Automatic Width Adjustment
3. Automatic Pusher Positioning at Half the Conveyor Width
4. ESD Grounding Sockets
5. Safety Cover
6. Cooling Fan
7. High-Speed Magazine Change Time down to 15 seconds
8. CE Version (Model Name: ESM-100C / ESM-200C)
9. Large PCBs (larger than 530Lx460W) Applicable
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Touch Screen Operating Panel
3. 3-Color Tower Lamp with Audible Alarm
4. Magazine change time down to 26 seconds (220V, 60Hz, 1Ph)
5. Magazine rack capacity: 1 rack (loaded by the operator from the front of the machine)
6. Selectable pitch and first start slot settings via touch screen
7. Multiple Functions
ESM-100: Buffer (FIFO/LIFO)/By-Pass/NG
ESM-200: Buffer (FIFO/LIFO)/By-Pass/NG/Loader/Unloader
8. Exit Rail Guide
9. Compliant with SMEMA Specification 1.2.
| Model | ESM-100 / ESM-200 | |||
|---|---|---|---|---|
| Type | SL | YL | LL | XL |
| PCB Size (LxW, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×330 | 50×50 ~ 530×390 | 50×50 ~ 530×460 |
| Magazine Size (LxWxH, mm) | 355x318x570 | 460x400x570 | 535x460x570 | 535x530x563 |
| Machine Size (LxWxH, mm) | 1050 x 715 x 1150 | 1250 x 795 x 1150 | 1450 x 885 x 1150 | 1450 x 955 x 1150 |
| Weight (kg) | 200 | 220 | 250 | 280 |
