Chain Belt Buffer

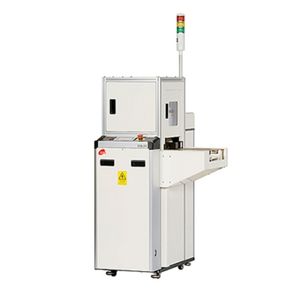

Model ECB-200. The Chain Belt Buffer is designed to balance the production line between machines with different process times. For stacking and transferring PCBs, a separate belt system in each slot provides contact-free handling conditions.
Model ECB-200
Equipment Name
Chain Belt Buffer
Description

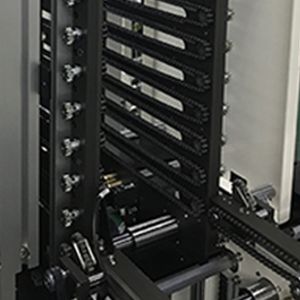

Designed to balance the production line between machines with different process times. For stacking and transferring PCBs, a separate belt system in each slot provides contact-free handling conditions. The chain belt system offers protection against damage that could be caused by high-temperature PCBs or pallets coming out of the reflow oven. In addition, on a coating line, the belt contaminated with coating material is easy to clean.
Standard Features
1. Automatic Width Adjustment
2. Touch Screen Operation Panel
3. 3-Color Tower Lamp with Audible Alarm
4. PCB Stack Capacity: 15 Boards (based on 1 step, 40 mm)
5. Entry Conveyor at the PCB Entry Side, Lifting Rack at the PCB Exit Side
6. Selectable Mode: Buffer (FIFO, LIFO) / By-Pass
7. Compliant with SMEMA Spec. 1.2.
Options
1. ESD Grounding Sockets
2. Safety Cover for the Entry Conveyor

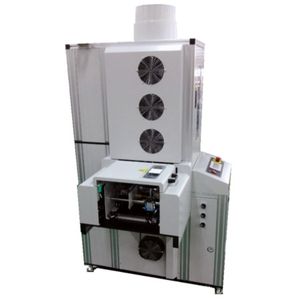

3. Cooling Fan
4. High-Speed Lifting
5. Dual Buffer Type (Model Name: ECB-200D)
6. CE Version (Model Name: ECB-200C)
7. Large PCBs (larger than 430L x 350W) Applicable
| Model | ECB | |
|---|---|---|
| Type | SL | YL |
| PCB Size (L x W, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×350 |
| Machine Size (L x W x H, mm) | 900x1015x1650 | 1100x1145x1650 |
| Weight (kg) | 230 | 260 |
