Machine Tending
Mech-Mind’s 3D vision-guided machine tending solution enables robots to quickly detect the most challenging parts of various sizes and shapes, accurately pick them, and stably place them at designated locations.
Mech-Mind’s 3D vision-guided machine tending solution enables robots to quickly detect the most challenging parts of various sizes and shapes, accurately pick them, and stably place them at designated locations.
Core Advantages
Plug and Play, Easy to Use
WIth a visualized interface, Mech-Viz robot programming software can simulate the robots’ path with one click. The code-free programming environment enables a low threshold for users to deploy.
Robust Recognition
Parts can be reflective, finished, glossy, tiny, thin, curve-edged, or complex-shaped. Parts can be arranged in a random order, overlap or be densely stacked.
Intelligent AI Algorithms
The powerful path planning and collision detection algorithm guarantees the movement of robots is precise and collision-free.
Specification
| Objects | Support objects in different sizes and shapes (including randomly stacked tiny objects, complex-structured metal parts with dark or shiny surfaces, etc.) |
|---|---|
| Robot Brands | Can be adapted to various mainstream robot brands |
| Calibration | Self-calibration |
Intelligent Algorithms
Intelligent Picking Strategy
- The intelligent picking strategy guides the robot to accurately pick up objects. The picking success rate is > 99%.

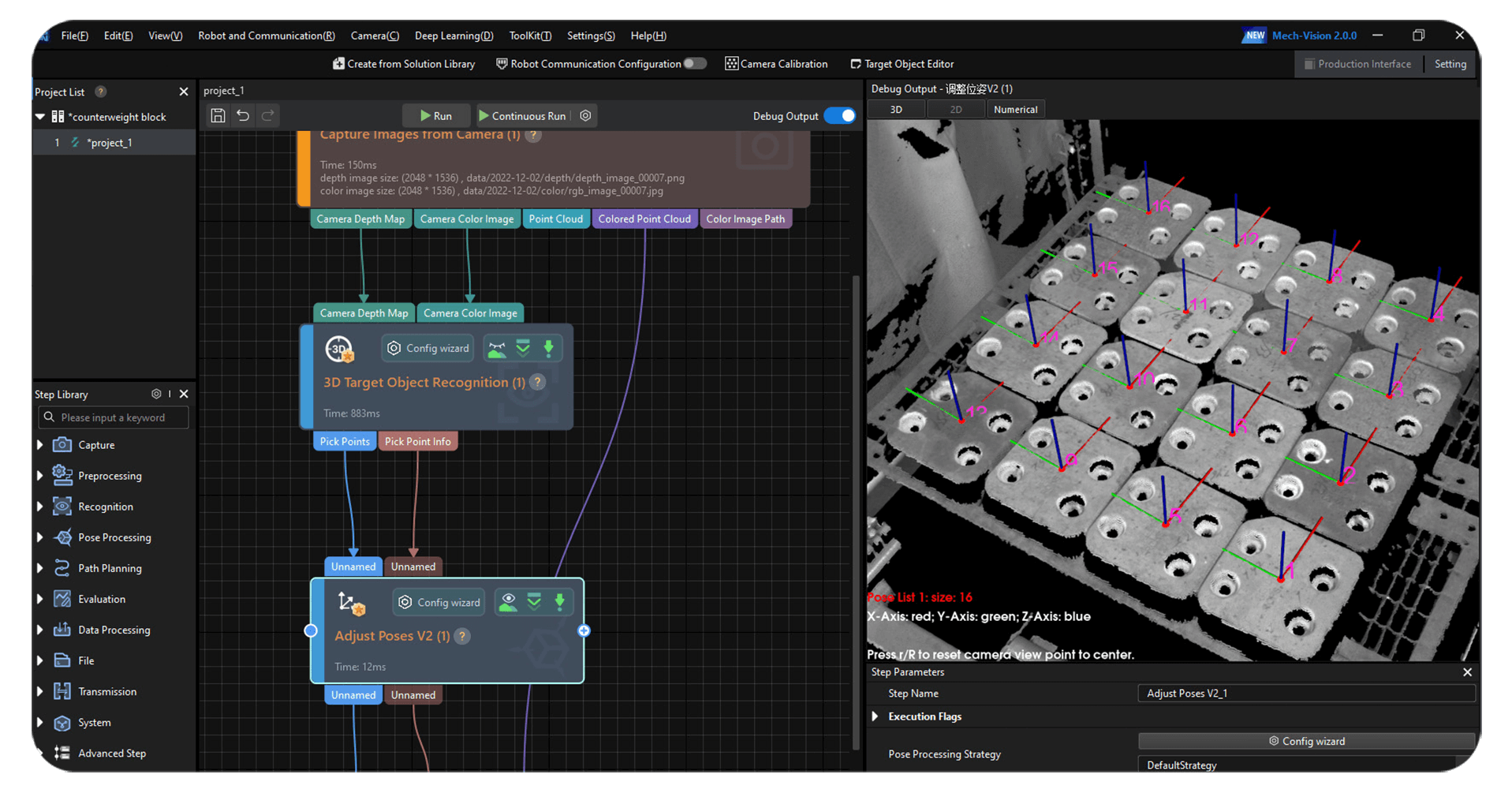

Mech-Vision Machine Vision Software
- Mech-Vision simplifies all codes into steps, users can edit algorithms without writing any codes.
- It can support users to develop customized algorithms and independently deploy multiple typical applications.

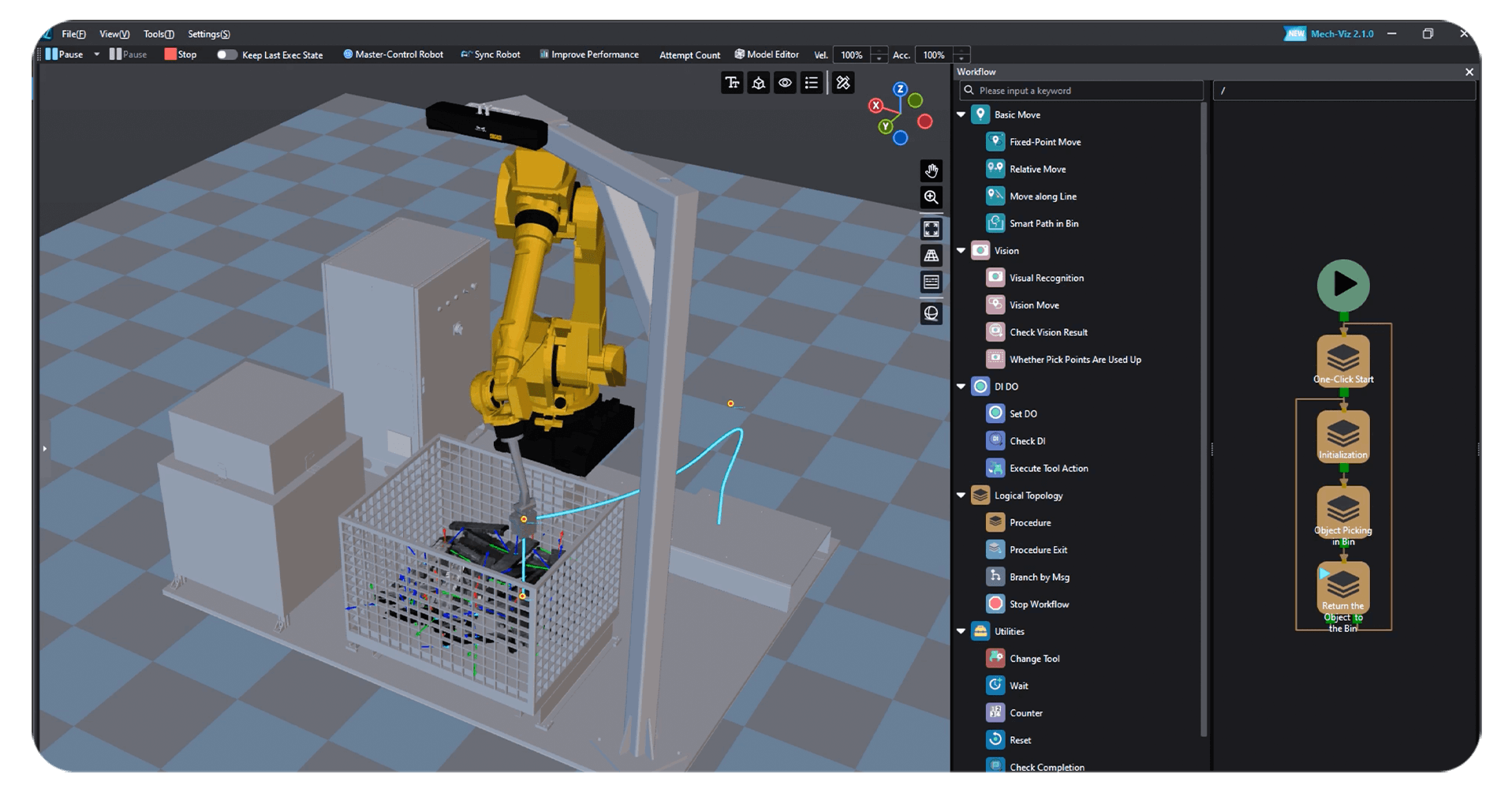

Mech-Viz Interface

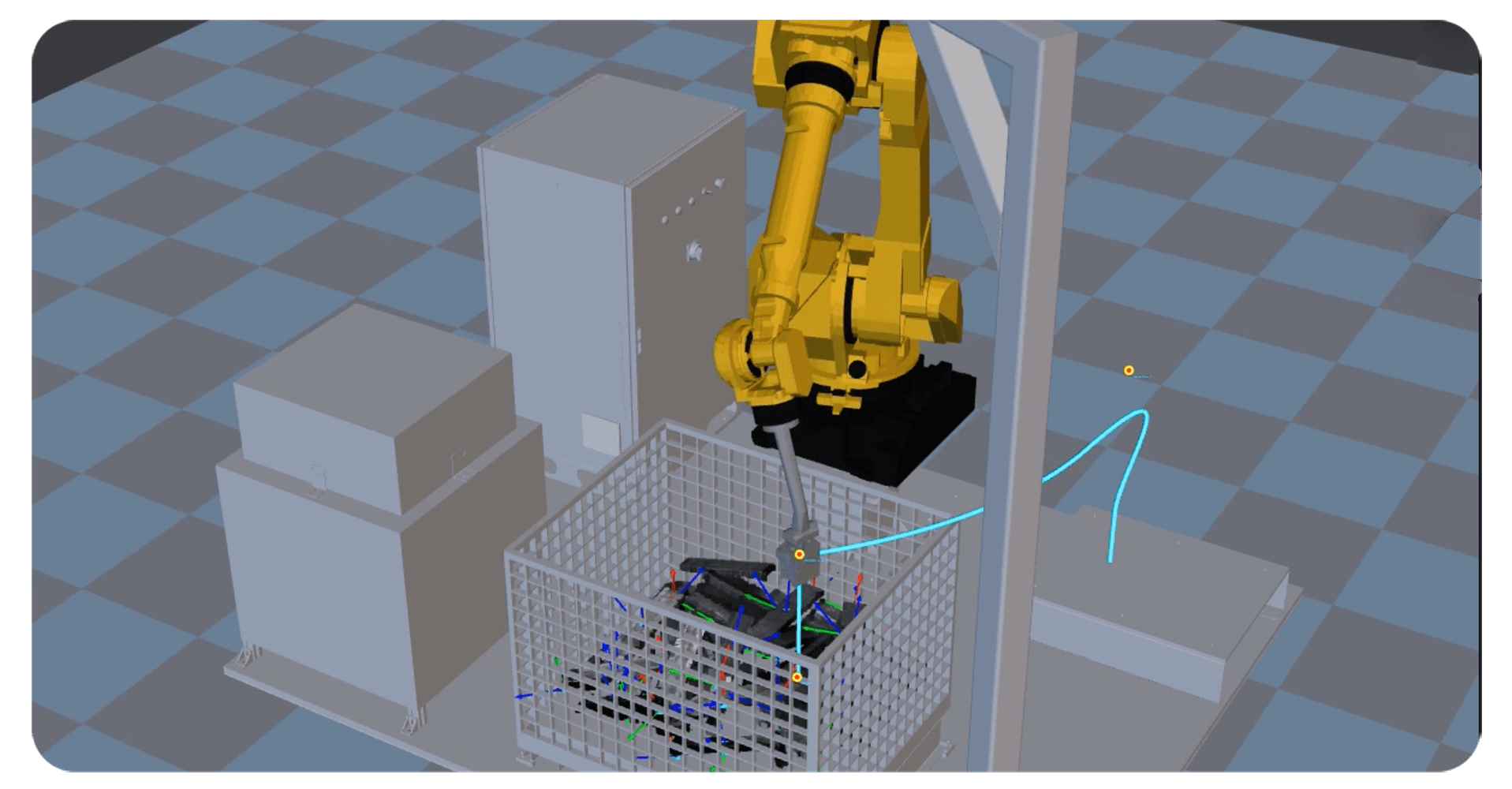

- One-click simulation on the left side of the software. Users can intuitively see the robot’s motion path, recognition results and collision model.
- · The right side is the robot operation process, which is easy to learn to operate.
- Different from traditional code-based programming software, Mech-Viz is a graphical and visual programming software.
- Built-in intelligent algorithms such as path planning, collision monitoring, and picking planning can help the robot plan the optimal route and avoid collision.
- With Mech-Viz, users can manipulate robots after simple training.
- Our solutions can be adapted to various mainstream robot brands.
Mech-Eye Industrial 3D Cameras

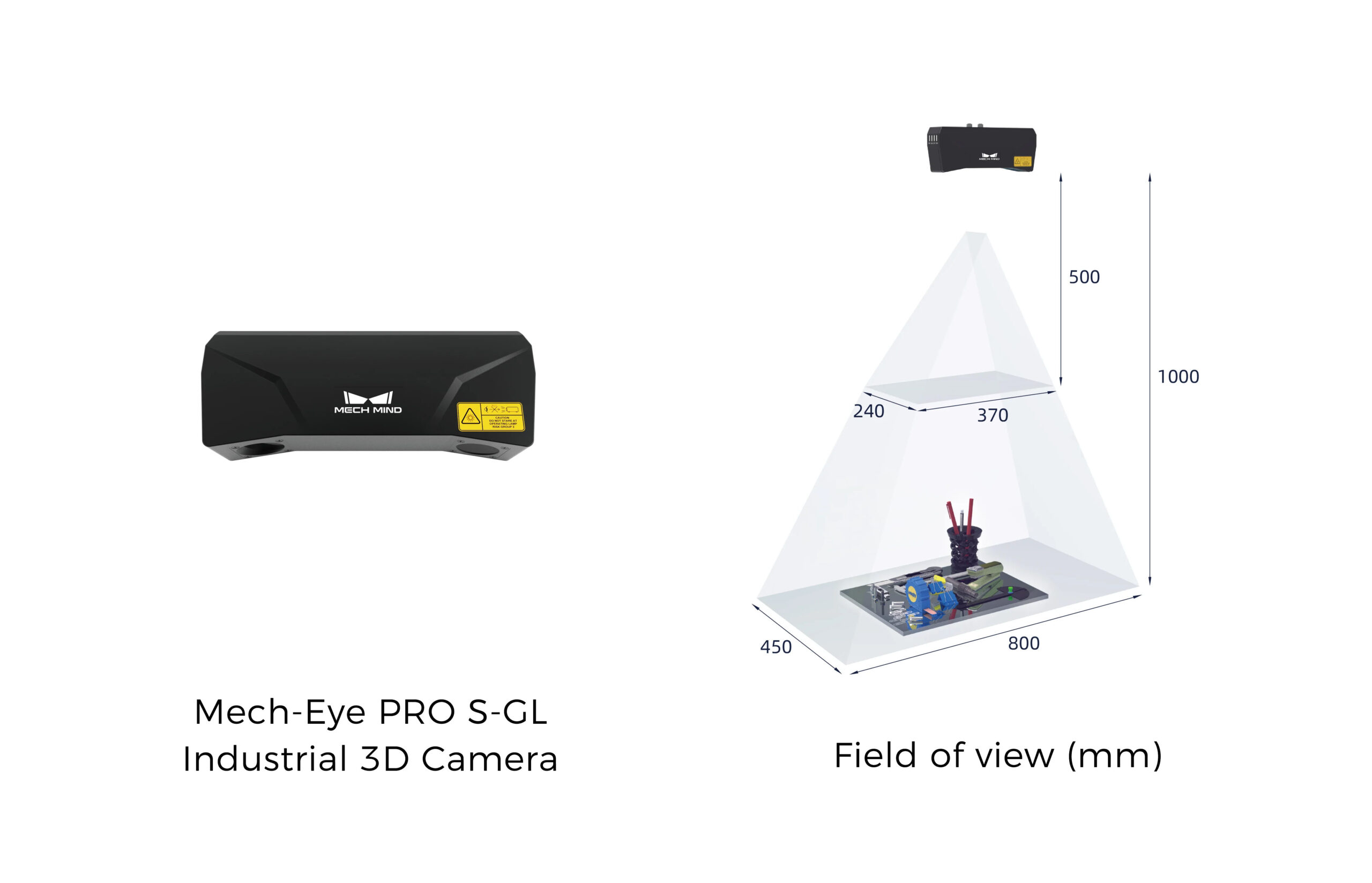

Mech-Eye PRO S-GL
- High accuracy
- Detail-rich 3D point cloud images
- Rapid image acquisition
- Designed for short- and medium-range applications

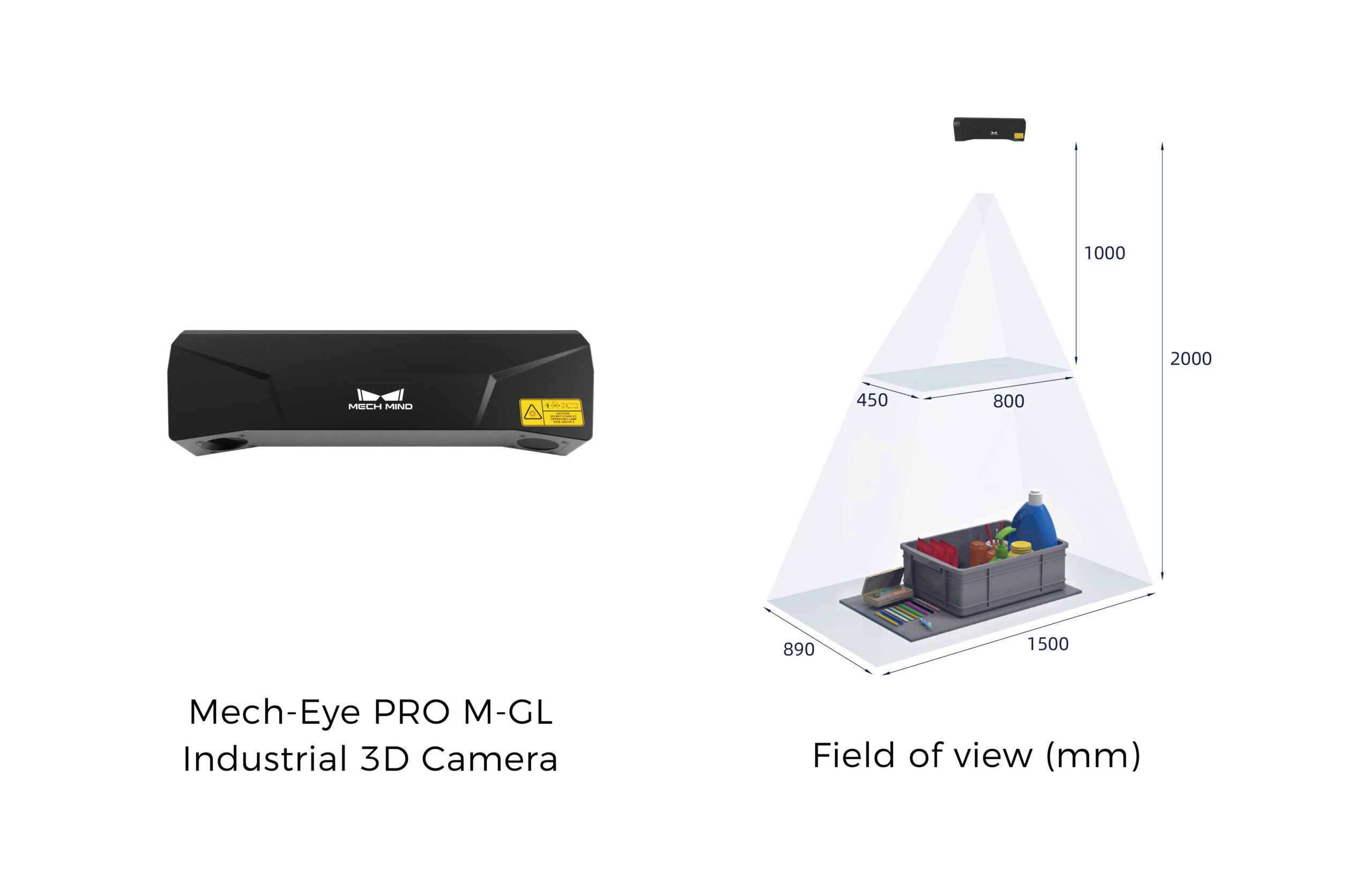

Mech-Eye PRO M-GL
- High accuracy
- Extended FOV
- Detail-rich 3D point cloud images
- Rapid image acquisition
- Designed for medium-range robotic applications

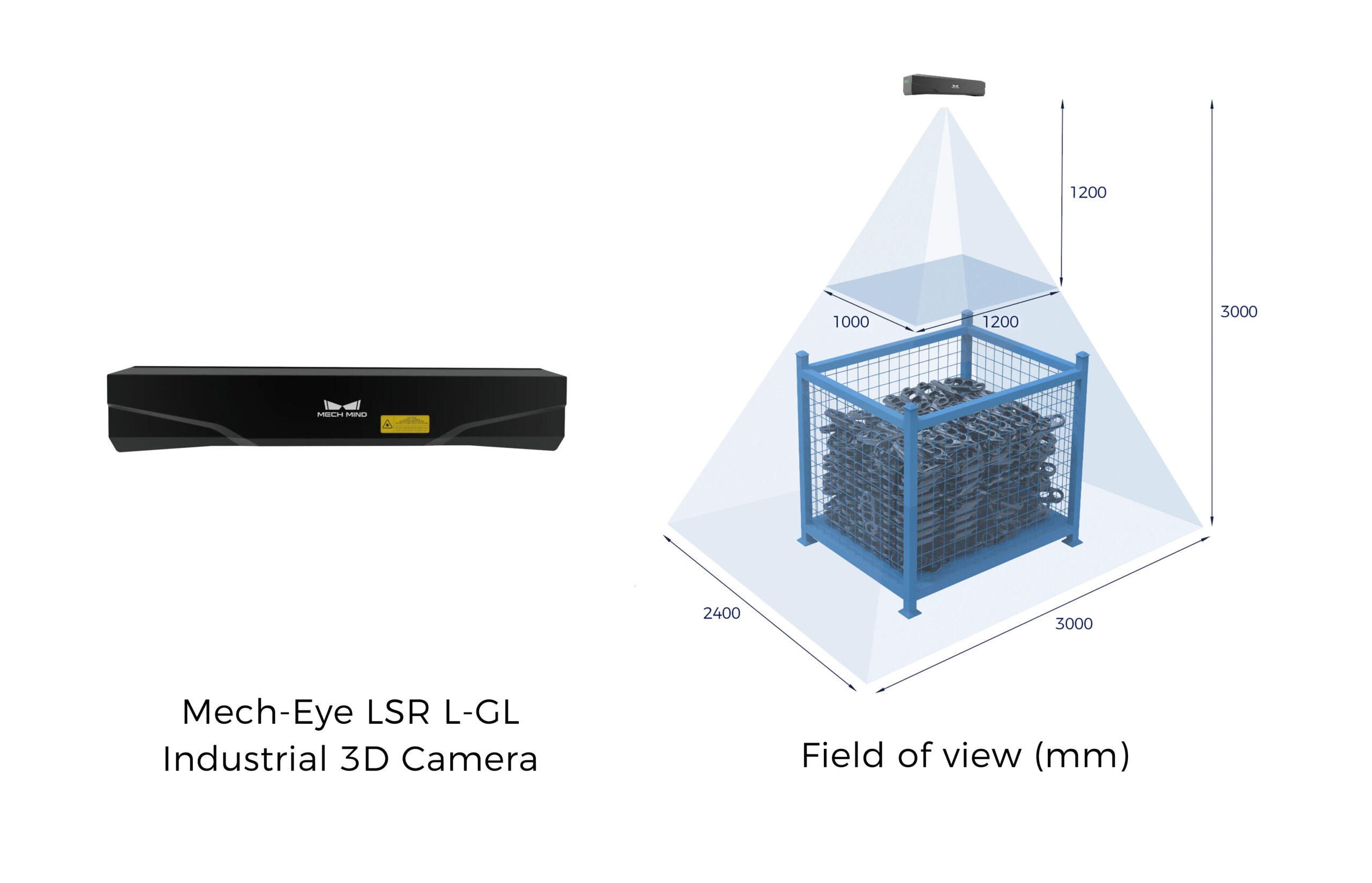

Mech-Eye LSR L-GL
- Large FOV
- Ambient light resistance
- Robust interreflection suppression
- Ideal for robotic guidance

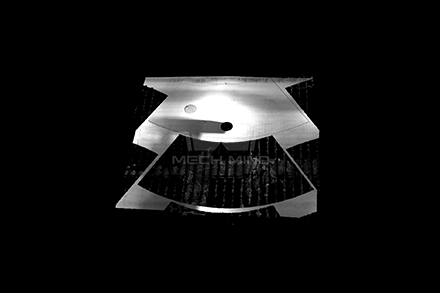

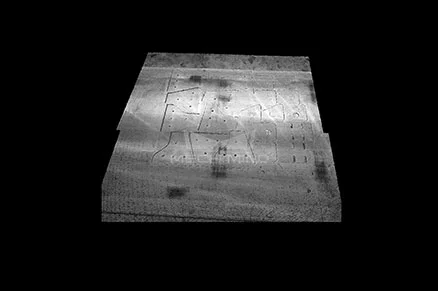

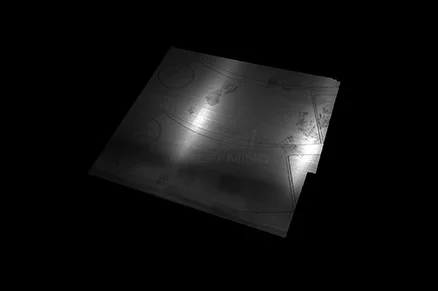

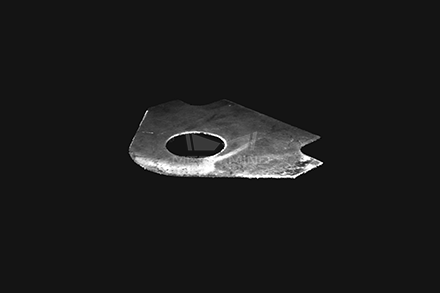

Highly Accurate 3D Point Clouds
Steel plates
Steel plates
Steel plates
Steel plates
Cases

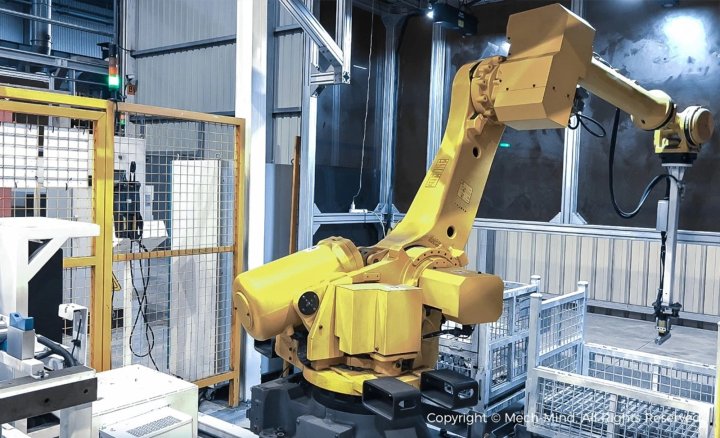

3D Vision-Guided Machine Tending of Steel Bars
3D Vision-Guided Steel Plate Picking and Bending

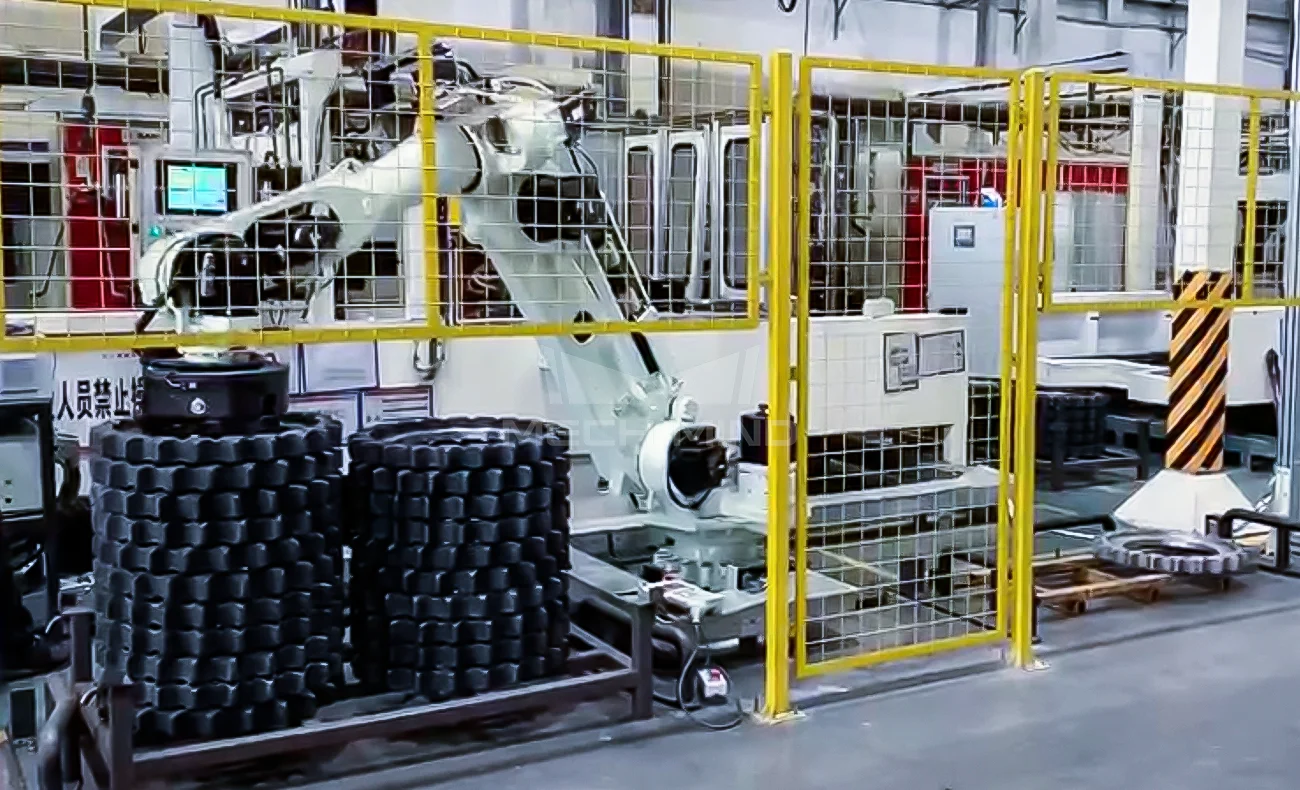

3D Vision-Guided Drive Gear Picking
Videos
3D picking of crankshafts
3D picking of gears
3D picking of small parts
3D picking of brake discs
3D picking of track linkes
3D picking of small parts
Request a Quote
Pricing, lead time and integration details for Machine Tending
