Localization and Assembly
Mech-Mind 3D vision system enables robots to manage complex assembly, localization, and other automation tasks with high accuracy and remarkable dexterity.
Core Advantages
High Intelligence
Mech-Mind 3D vision system detects and locates parts with high accuracy even in long-range working distance.
Plug and Play, Easy to Use
With just one click, a visualized, no-code interface allows for simulated robot movement.
Path Planning
The integrated path planning algorithm ensures precise and collision-free movement of robots.
Specification
| Objects | Metal parts of different shapes (sheets, blocks, columns, rings, etc.) and types (aluminum, iron, copper, etc.) |
|---|---|
| Robot Brands | Support for almost all major robot brands |
| Calibration | Self-calibration |
Intelligent Algorithm

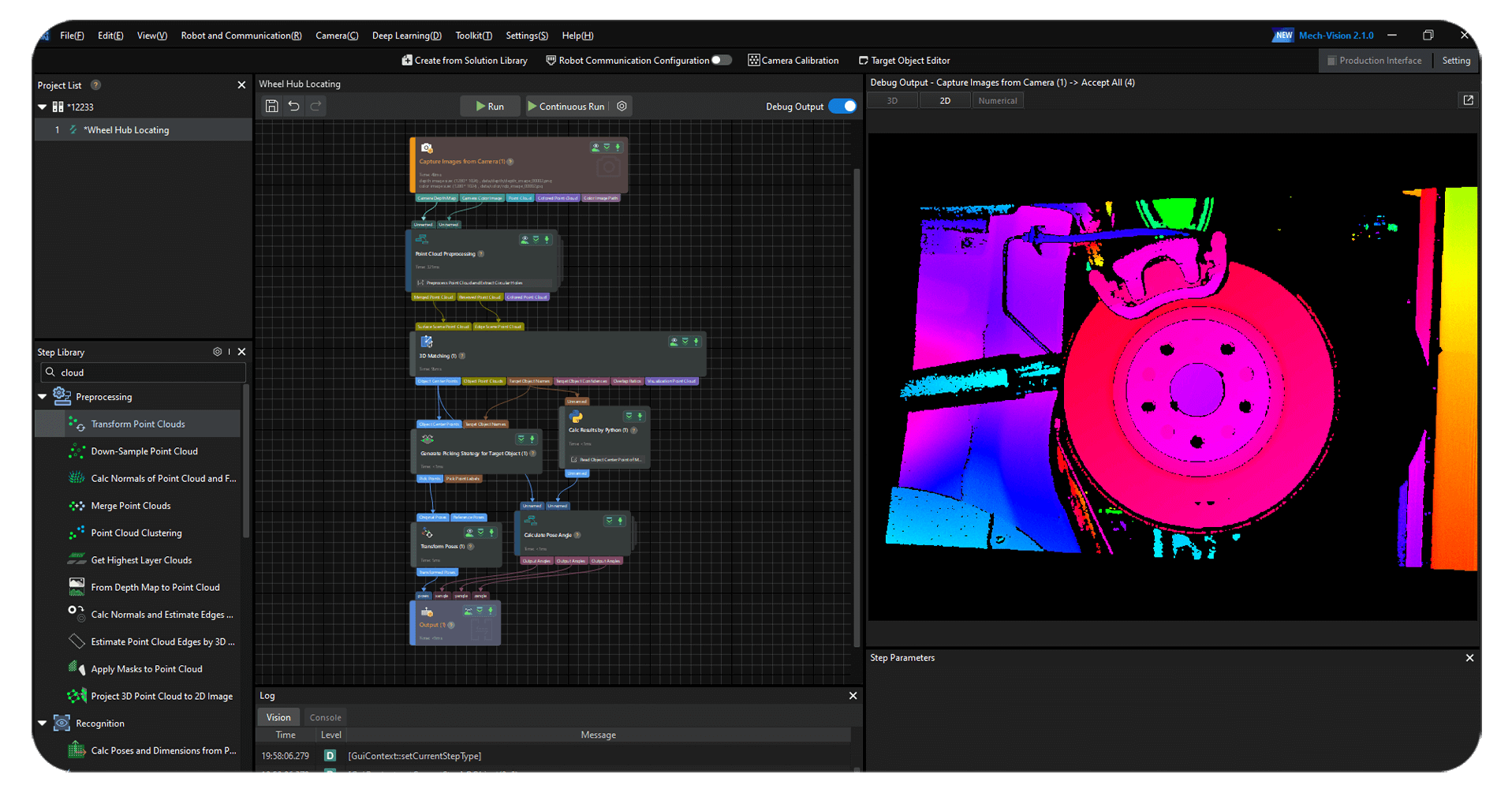

Mech-Vision Machine Vision Software
- Machine vision software Mech-Vision simplifies all codes into steps, and users can edit algorithms without writing any codes.
- It can support users to develop customized algorithms and independently deploy multiple typical applications, including bin picking, machine tending, piece picking, depalletizing, and palletizing, etc.

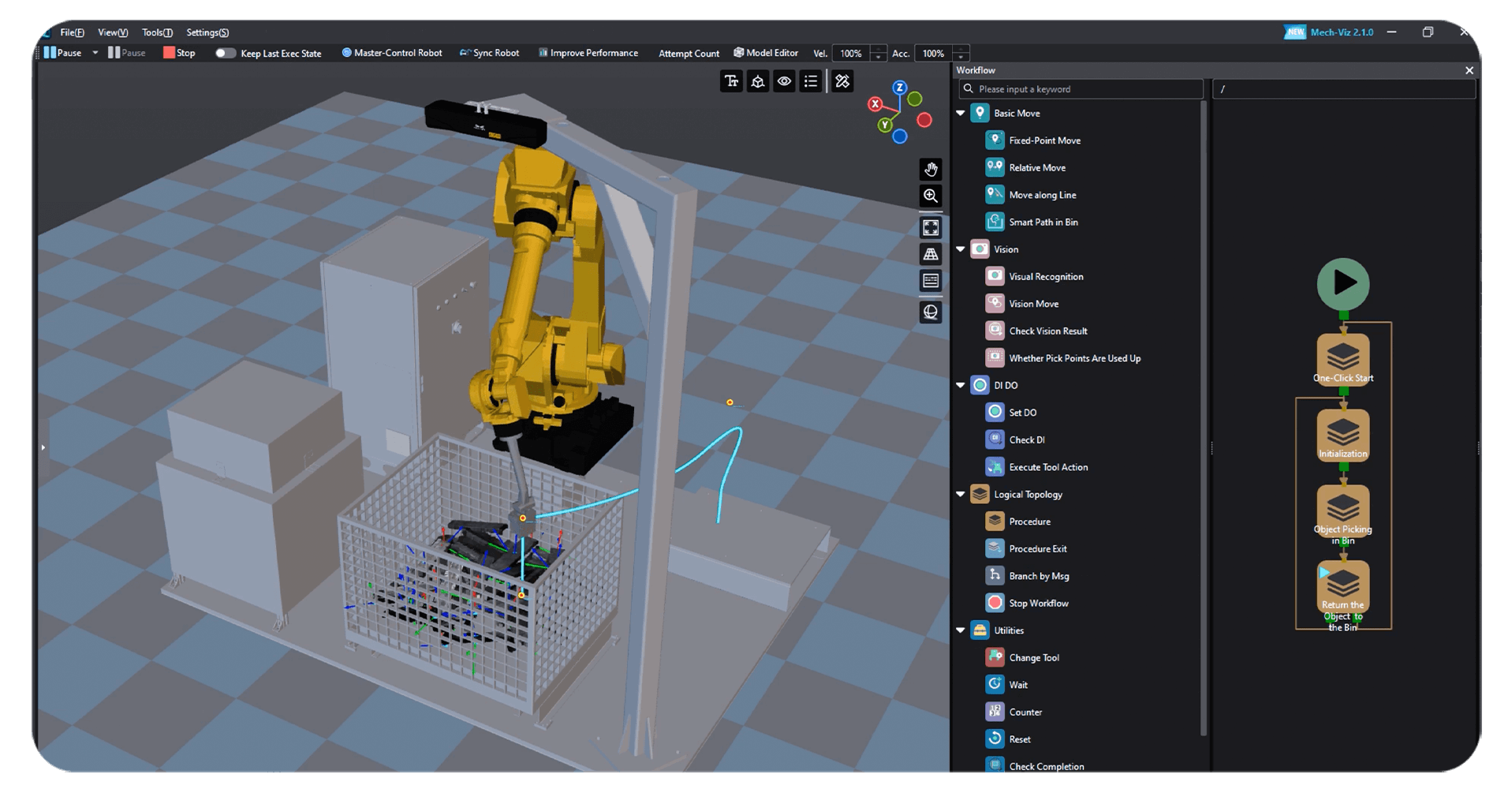

Mech-Viz Interface
- One-click simulation on the left side of the software. Users can intuitively see the robot’s path, recognition result of objects and collision models.
- · The right side is the robot operation process, which is easy to learn to operate.
- Different from the traditional code-based programming software, Mech-Viz is a graphical robot programming software.
- Built-in path planning, collision detection, grasping planning and other intelligent algorithms help the robot plan the optimal path and avoid collisions.
- With Mech-Viz, non-experts can deploy various robotic applications after simple training..
- Mech-Viz supports almost all major-brand robots.
Mech-Eye Industrial 3D Cameras

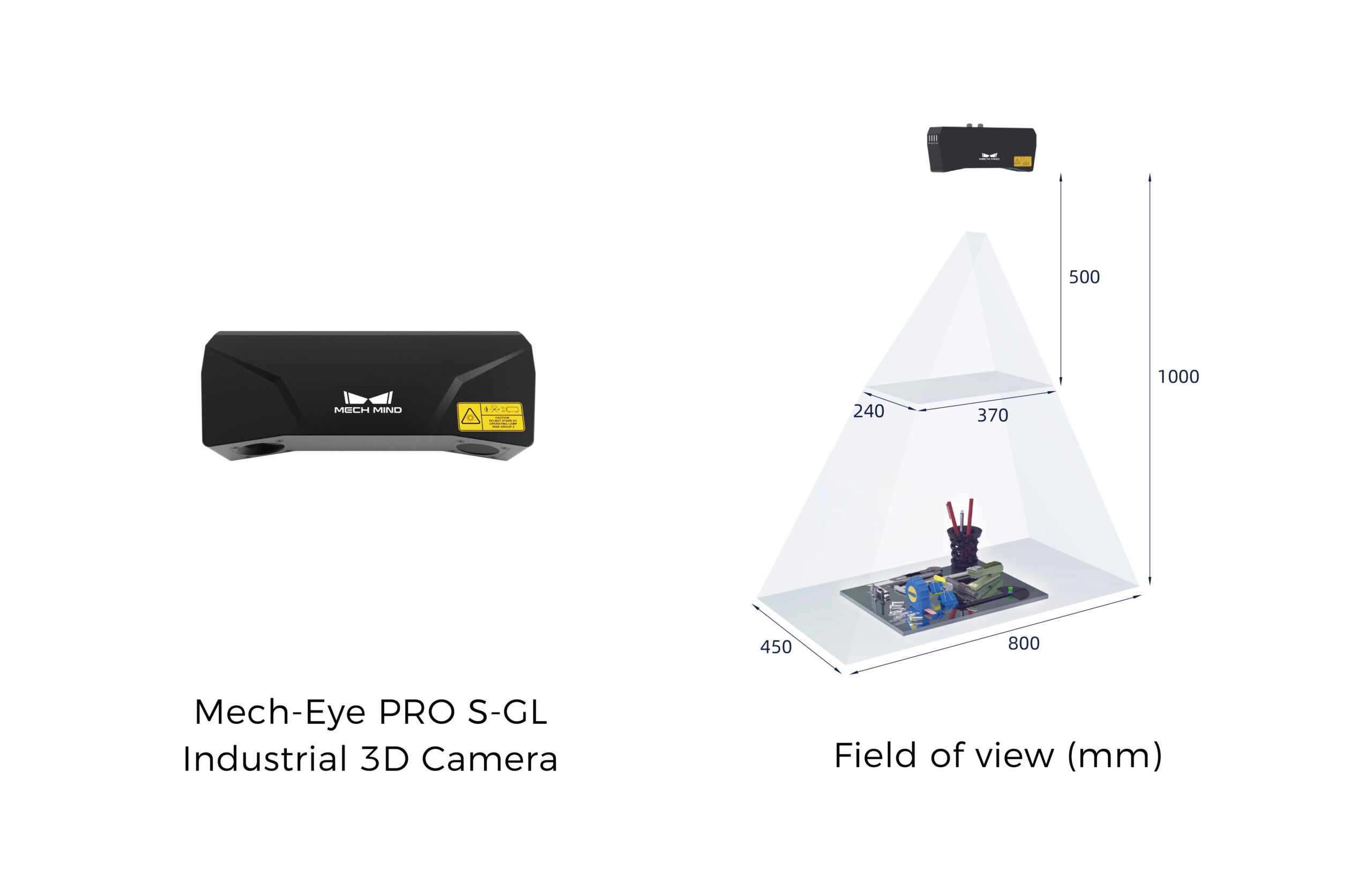

Mech-Eye PRO S-GL
- High accuracy
- Detail-rich 3D point cloud images
- Rapid image acquisition
- Designed for short- and medium-range applications

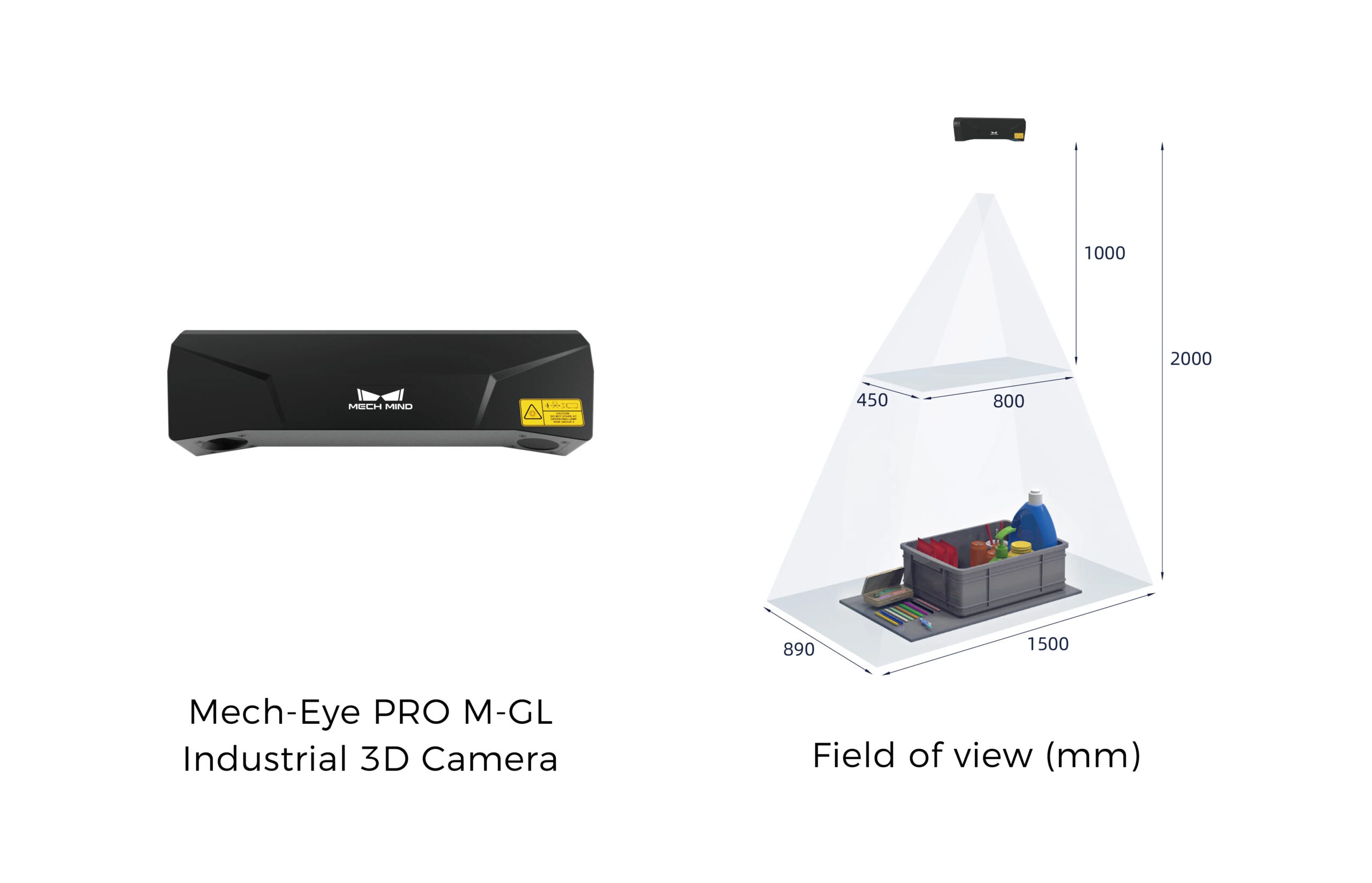

Mech-Eye PRO M-GL
- High accuracy
- Extended FOV
- Detail-rich 3D point cloud images
- Rapid image acquisition
- Designed for medium-range robotic applications

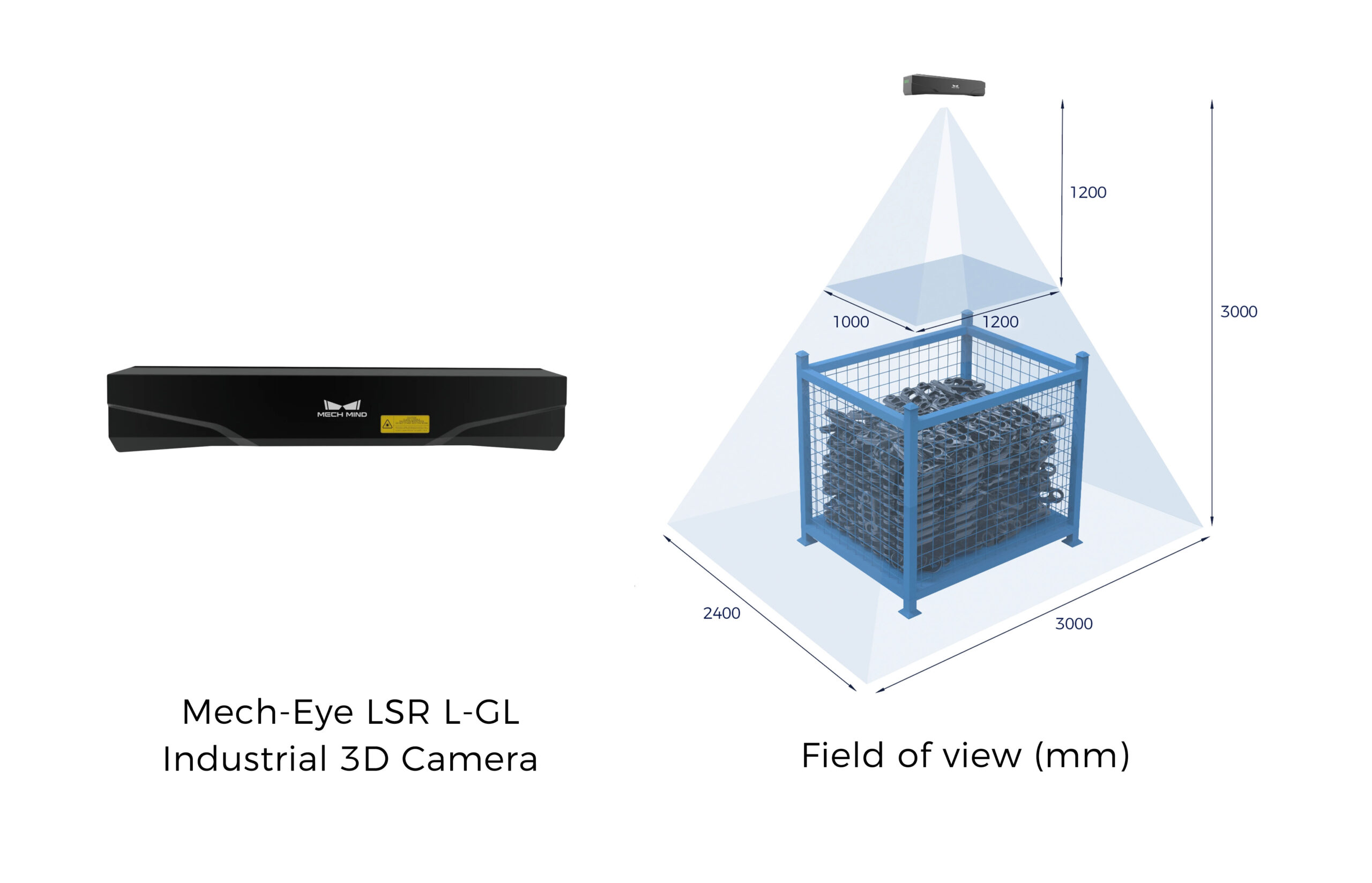

Mech-Eye LSR L-GL
- Large FOV
- Ambient light resistance
- Robust interreflection suppression
- Ideal for robotic guidance
Highly Accurate 3D Point Clouds

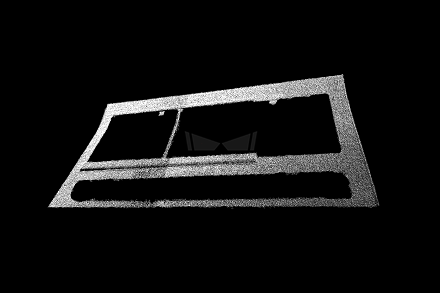

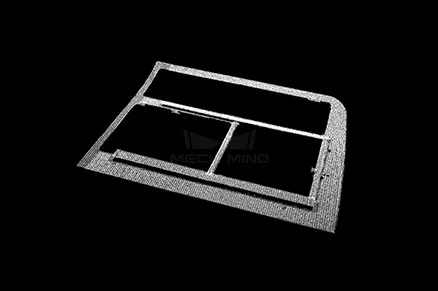

Side window frame
Door frame

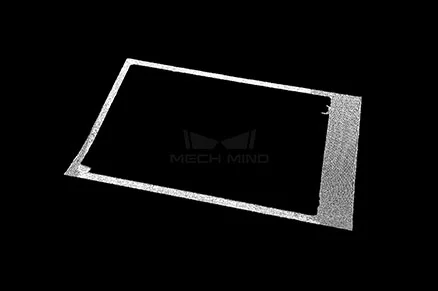

Window glass
Window glass
Cases

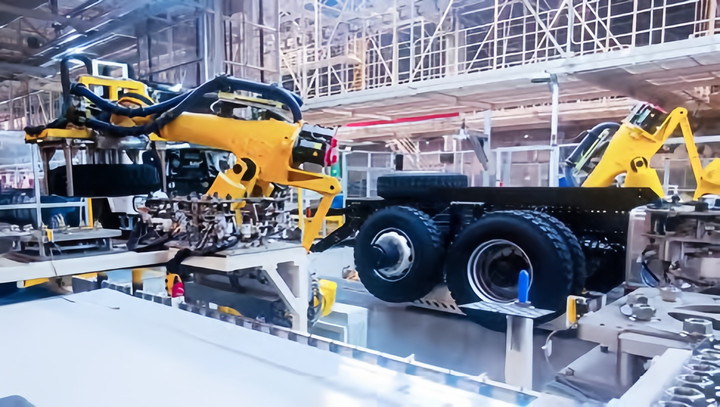

3D Vision-Guided Tire Assembly

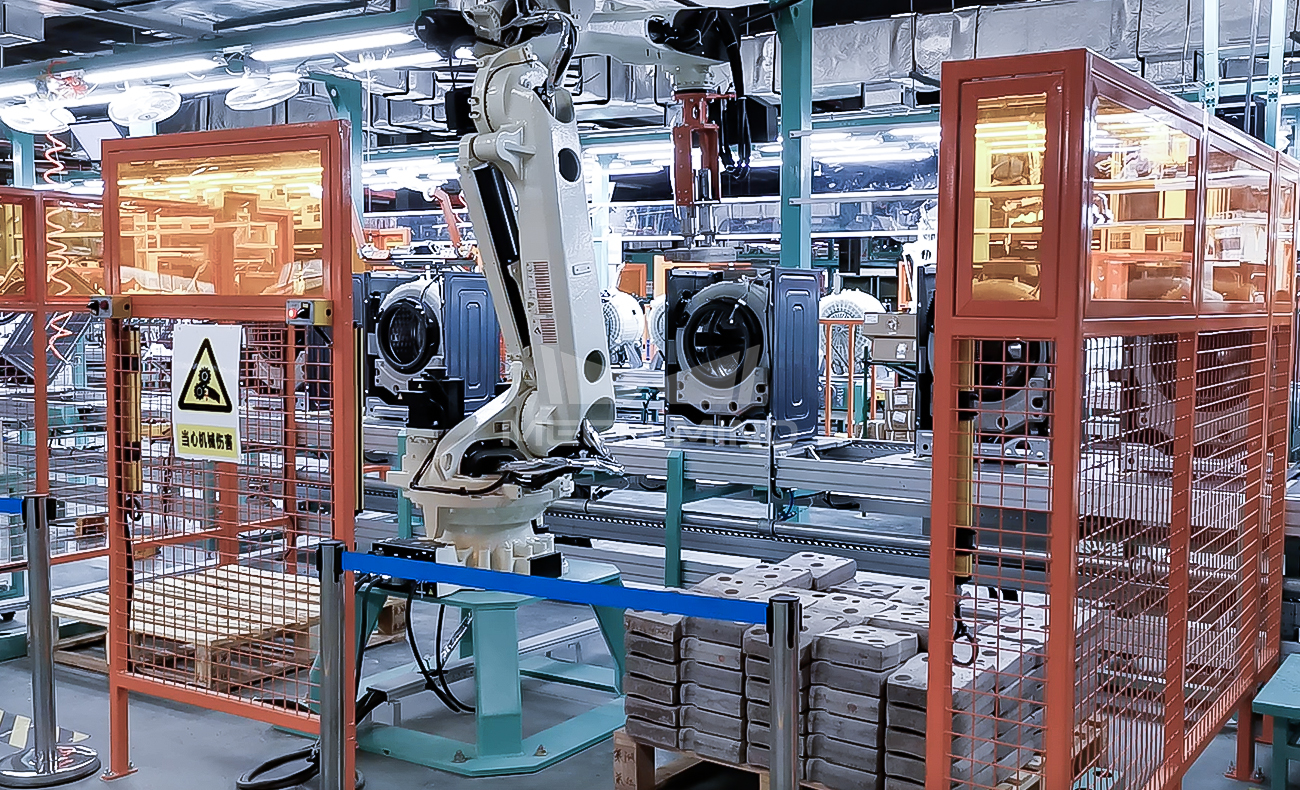

3D Vision-Guided Assembly of Counterweights

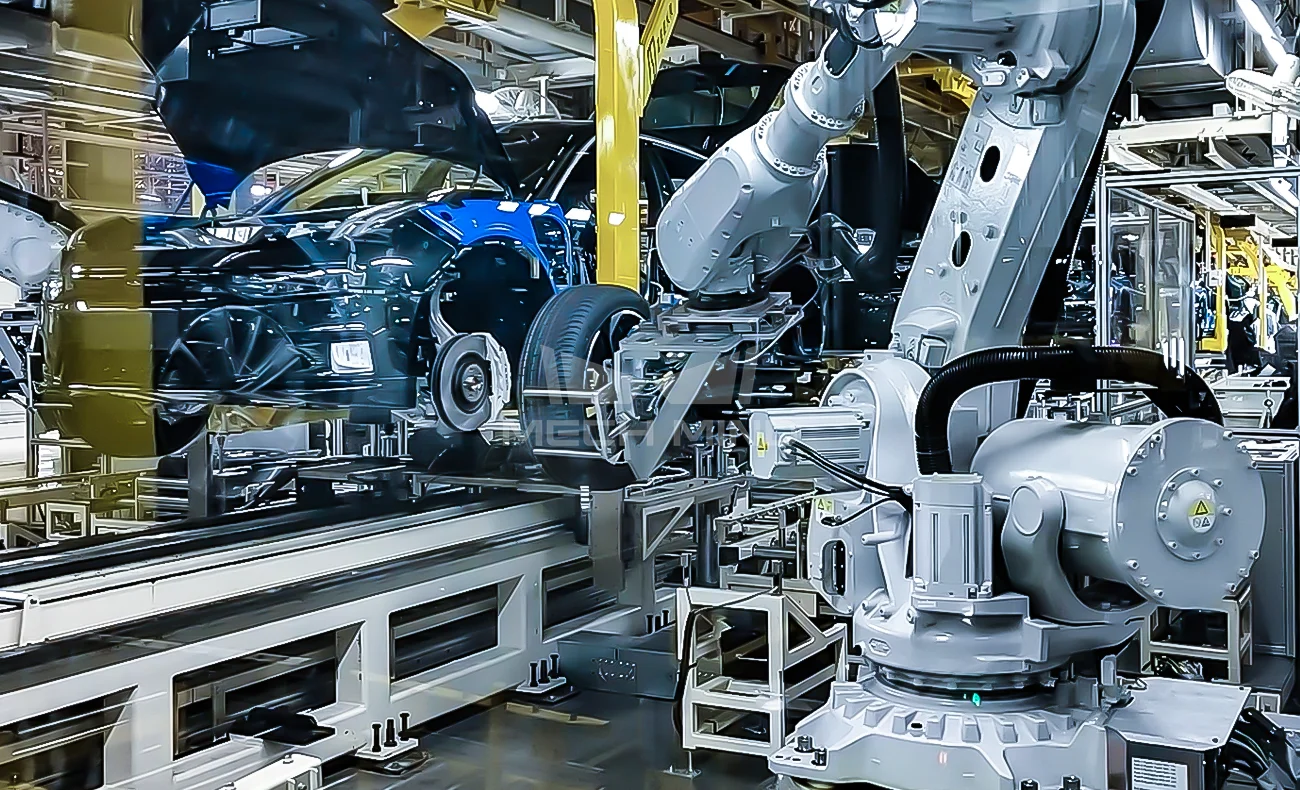

3D Vision-Guided Wheel Installation
Videos
3D Vision-Guided Tote Depalletizing
3D Vision-Guided Carton Depalletizing
3D Vision-Guided Depalletizing of Sacks
Request a Quote
Pricing, lead time and integration details for Localization and Assembly
