Vacuum Loader/Unloader

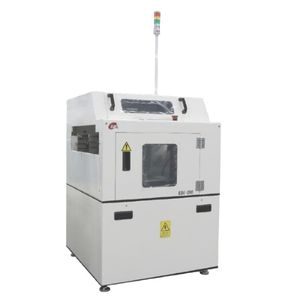

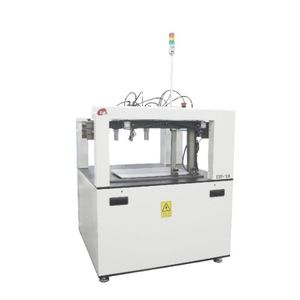

Model ESV-100 / ESV-200. Vacuum pick-up loader designed to load bare PCBs into the next process with a vacuum pick-up unit (vacuum arm and base up/down system). The operator stacks bare PCBs in the stacking area at the lower side of the conveyor, accessed from the front of the machine.
Model
ESV-100 / ESV-200
Equipment Name
Vacuum Pick-up Loader
Description
Designed to load bare PCBs into the next process with a vacuum pick-up unit (vacuum arm and base up/down system). The operator stacks bare PCBs in the stacking area at the lower side of the conveyor. The stacking area is accessed from the front of the machine. Stacked PCBs are loaded in last-in first-out order.
Standard Features
1. Can Connect to a Magazine Loader (Transfer Mode)
2. Manual Width Adjustment (Knob Bolt Fixing)
3. Touch Screen Operation Panel
4. 3-Color Tower Lamp with Audible Alarm
5. Maximum Capacity of Stacked PCBs: 170 PCBs (based on 1.6 mm thickness)
6. Weight Capacity of Stacked PCBs: less than 100 kg
7. Compliant with SMEMA Spec. 1.2
8. Safety Cover: ESV-200 Model Only
Options
1. Manual Width Adjustment (Hand Lever)
2. Automatic or Semi-Automatic Width Adjustment
3. ESD Grounding Sockets
4. Vacuum Loading/Unloading Type (Model Name: ESV-100U / ESV-200U)
5. CE Machine (Model Name: ESV-100C / ESV-200C)
6. Large PCBs (larger than 530L x 460W) Applicable
| Model | ESV-100 / ESV-200 | ||
|---|---|---|---|
| Type | SL | YL | XL |
| PCB Size (L x W, mm) | 50×50 ~ 330×250 | 50×50 ~ 430×350 | 50×50 ~ 530×460 |
| Machine Size (L x W x H, mm) | 700x700x985/700x700x1150 | 800x800x985/800x800x1150 | 900x900x985/900x900x1150 |
| Weight (kg) | 120 / 160 | 140 / 170 | 160 / 180 |
