Options

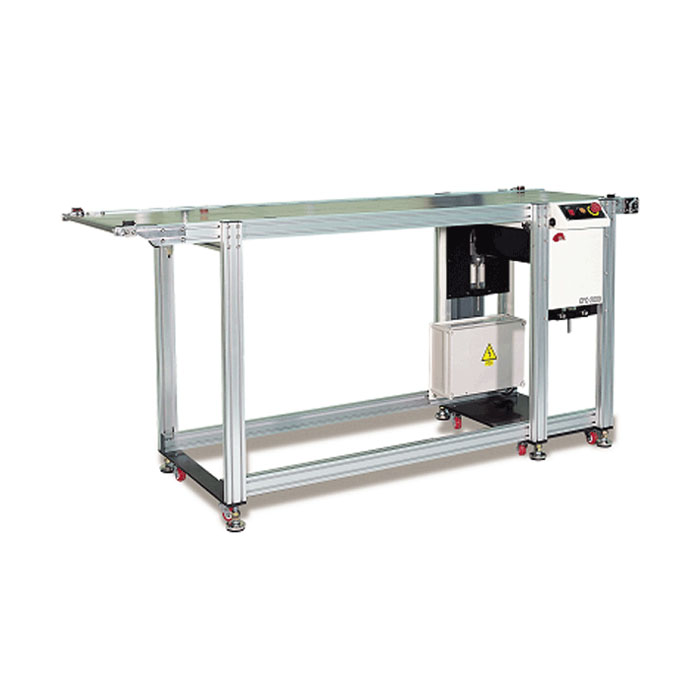

Model EFC-2000 flat belt conveyor, designed as an in-line workstation for manual placement production lines. Ideal when the underside of the product must be fully supported, or when products of different widths must be conveyed without changing the rail width.
Model EFC-2000
Equipment Name
Flat Belt Conveyor
Description
Designed for use as an in-line workstation in manual placement production lines. It is ideal when the underside of the product must be fully supported, or when products of different widths must be conveyed without changing the rail width.
1. Touch Screen for Operation Panel
2. 3-Color Tower Lamp with Audible Alarm
3. ESD Grounding Sockets
4. Hard Stopper at Exit (End Plate)
5. Look-Down Sensor for Board Detection
6. Buffer Conveyor Operation
7. CE Version (Model Name: EFC-2000C)
Standard Features
1. Conveyor Belt Width: 400 mm, 500 mm or 600 mm (Operating Temperature Max. 80 degrees)
2. Operation Panel Switch
3. Conveyor Length: 1,000 mm, 2,000 mm, 3,000 mm, etc.
4. Adjustable Conveyor Speed via Speed Controller Inside the Control Box: 0~180 mm/sec (60Hz)
5. Compliant with SMEMA Spec. 1.2
6. Minimum Board Thickness of 8 mm for PCB Detection with the Standard Look-Across Sensor (For boards thinner than 8 mm, please provide the board details so we can select the sensor type.)
Request a Quote
Pricing, lead time and integration details for Flat Belt Conveyor
