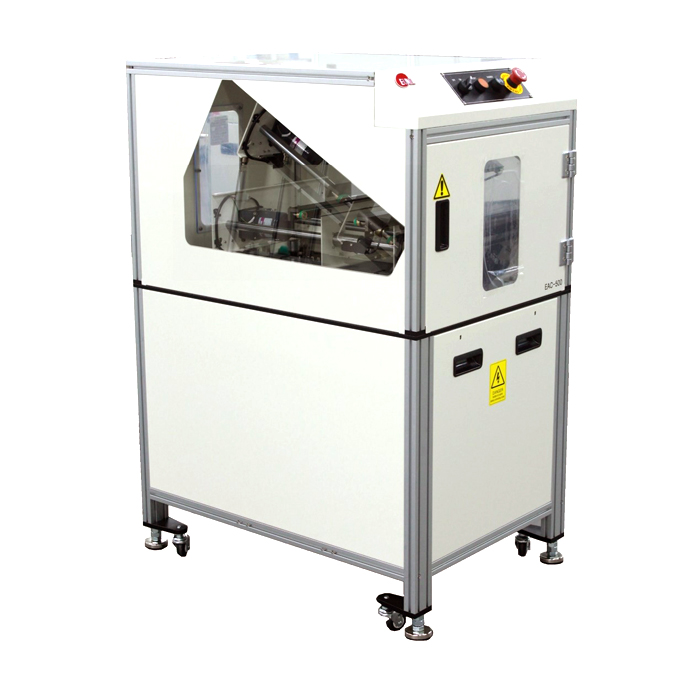

Tilt Up/Down Conveyor
Model
EAC-500
Name of Equipment
Tilt Up/Down Conveyor
Description
Designed to be used as a linear work station for manual inserting production line. This machine is applied before and after Tilting Insertion Conveyor (EAC-3000) to load (from 0 degree to required angle) & unload (from required angle to 0 degree) PCBs.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
6. CE Appliance (Model Name : EAC-500C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operating Panel
3. Standard Conveyor Length : 500mm
4. Tilt Up/Down Angle (When it becomes order, it should be fixed.) : 0 degree↔15 degree or 30 degree by Cylinder
5. Conforms to SMEMA Spec. 1.2
| Model | EAC-500 | |
| Type | SL | YL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 |
| Machine Dimension (LxWxH, mm) | 500x700x1070 | 500x800x1070 |
| Weight (kg) | 75 | 85 |
