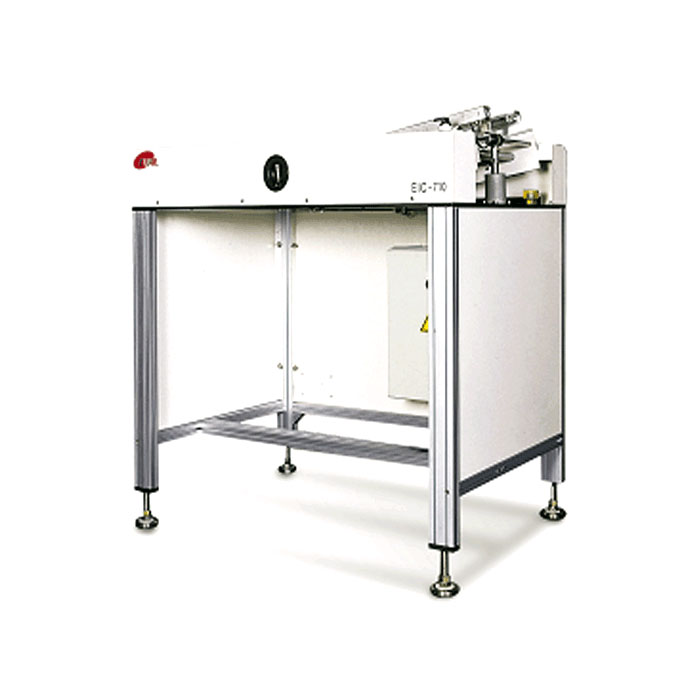

Incline Conveyor
Model
EIC-710
Name of Equipment
Incline Conveyor
Description
Design to smoothly infeed PCBs to wave soldering machine which has angle.
Options
1. Auto or Semi-Auto Width Adjustment
2. Touch Screen for Operating Panel
3. 3 Color Tower Lamp with Audible Alarm
4. ESD Grounding Receptacles
5. Safety Cover
6. Variable Conveyor Belt : #25 Chain Belt, Round Belt, Timing Belt
7. Conveyor Speed Adjustable by Speed Controller inside Control Box : 0~180mm/sec (60Hz)
8. CE Appliance (Model Name : EIC-710C)
Standard Features
1. Manual Width Adjustment (Hand Crank)
2. Switch for Operating Panel
3. Conveyor Two Buffers by Motor Drive
4. Customized Conveyor Exit Side Angle
: Depends on the Wave Soldering Machine Infeed Height and Angle
5. Conforms to SMEMA Spec. 1.2
| Model | EIC-710 | ||
| Type | SL | YL | XL |
| PCB Size (LxW, mm) | 50x50 ~ 330x250 | 50x50 ~ 430x350 | 50x50 ~ 530x460 |
| Machine Dimension (LxWxH, mm) | 1000x550x960 | 1100x650x960 | 1200x760x960 |
| Weight (kg) | 80 | 90 | 100 |
